Start Stop Button Switch Connector End View (M57)

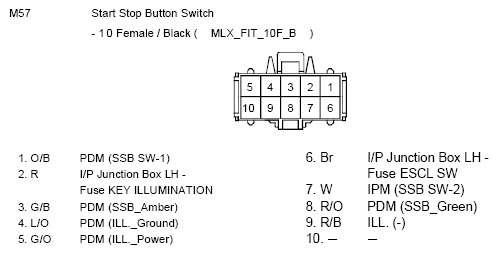

Fig 1: Start Stop Button Switch Connector End View (M57)

G10070008

Courtesy of HYUNDAI MOTOR AMERICA
