Multifunction Switch Connector End View (M48)

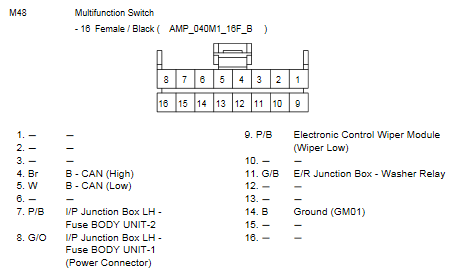

Fig 1: Multifunction Switch Connector End View (M48)

G10733290

Courtesy of HYUNDAI MOTOR AMERICA
