Media Module Connector End View (M45-B)

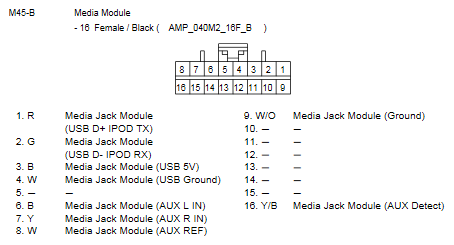

Fig 1: Media Module Connector End View (M45-B)

G10733287

Courtesy of HYUNDAI MOTOR AMERICA
