Repair procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the body surface.
  • Put on gloves to protect your hands.
  1. Remove the console rear complete assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  2. After loosening the mounting screws, then remove the rear console cover (A).

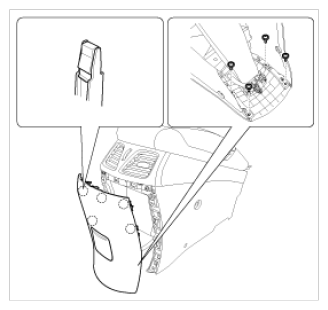

    Fig 1: Identifying Rear Console Cover
    G08810681Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the connector (A).

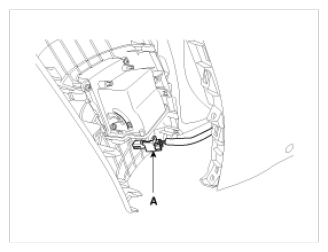

    Fig 2: Identifying Rear Console Cover Connector
    G08810682Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are connected in properly.
    • Replace any damage clips.
