Battery Diagnostic Flow

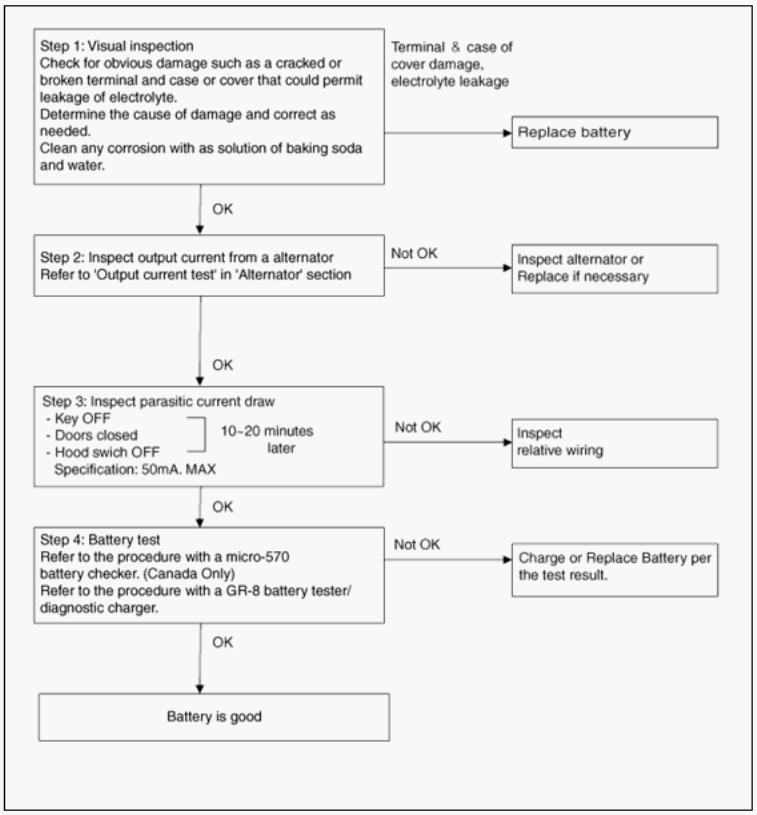

Fig 1: Battery Diagnostic Workflow Chart
G08804272Courtesy of HYUNDAI MOTOR AMERICA
