Repair procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Outside rear view mirror.
    2. Front pillar trim, both sides.
    3. Windshield wiper arms and cowl cover. (See FRONT WIPER MOTOR )
    4. Sunvisor and holders, both sides, overhead console, Grab handles, both sides.
  2. Remove the molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.

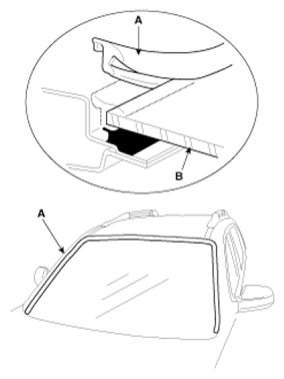

    Fig 1: Identifying Windshield With Molding
    G06844583Courtesy of HYUNDAI MOTOR CO.
  3. Pull down the front portion of the headliner. Take care not to bend the headliner excessively, or you may crease or break it.
  4. Cut out the sealant using the sealant cutting tool (A) (09861-31100).

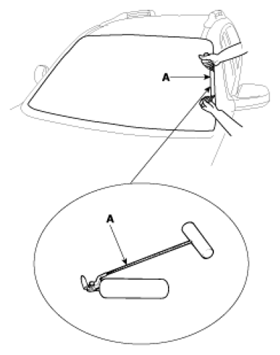

    Fig 2: Cutting Out Sealant Using Sealant Cutting Tool (09861-31100)
    G06844584Courtesy of HYUNDAI MOTOR CO.
  5. Remove the windshield (B) carefully using the glass holder (A).

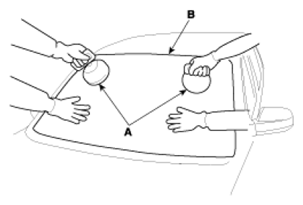

    Fig 3: Removing Windshield Using Glass Holder
    G06844585Courtesy of HYUNDAI MOTOR CO.
