Cluster Replacement

NOTE:
  • When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
  • Put on gloves to protect your hands.
  1. Tilt the steering column down.
  2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).

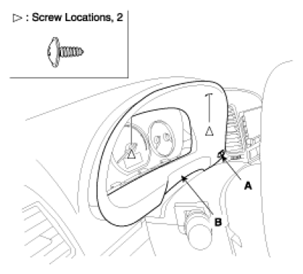

    Fig 1: Identifying Trip Sensor Connector And Cluster Facia Panel
    G06844536Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse the removal.
  4. Loosen the screws.
  5. Remove the cluster (A).

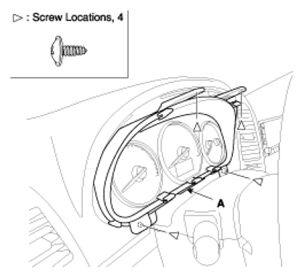

    Fig 2: Identifying Cluster
    G06844537Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the cluster connector (A), then remove the cluster (B).
    Fig 3: Identifying Cluster With Connectors
    G06844538Courtesy of HYUNDAI MOTOR CO.
  7. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are plugged in properly.
