Floor Console Replacement: [At]

  1. Remove the knob (A).

    [LHD]

    Fig 1: Identifying Console Knob (LHD) (AT)
    G06844515Courtesy of HYUNDAI MOTOR CO.

    [RHD]

    Fig 2: Identifying Console Knob (RHD) (AT)
    G06844516Courtesy of HYUNDAI MOTOR CO.
  2. Remove the console under cover (A).
  3. Disconnect the connector.
    Fig 3: Identifying Console Under Cover (AT)
    G06844517Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the console mounting screw, remove the floor console side cover (A).

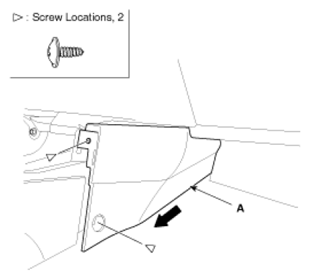

    Fig 4: Identifying Floor Console Side Cover (AT)
    G06844518Courtesy of HYUNDAI MOTOR CO.
  5. Remove the armrest lower Mat (A).
    Fig 5: Identifying Armrest Lower Mat (AT)
    G06844519Courtesy of HYUNDAI MOTOR CO.
  6. Remove the storage box console cover (A).
    Fig 6: Identifying Storage Box Console Cover (AT)
    G06844520Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the connectors (A).

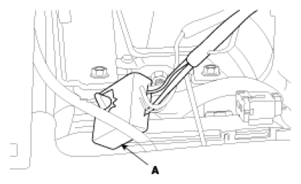

    Fig 7: Identifying Connectors (AT)
    G06844521Courtesy of HYUNDAI MOTOR CO.
  8. After loosening the console mounting bolts and screws remove the floor console assembly (A).

    [LHD]

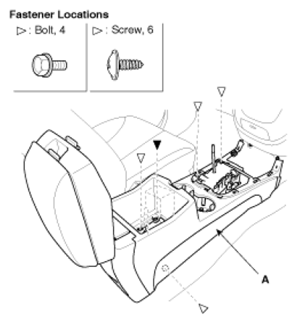

    Fig 8: Identifying Floor Console Assembly (LHD) (AT)
    G06844529Courtesy of HYUNDAI MOTOR CO.

    [RHD]

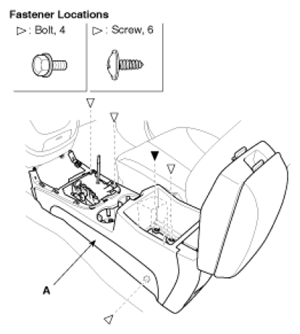

    Fig 9: Identifying Floor Console Assembly (RHD) (AT)
    G06844523Courtesy of HYUNDAI MOTOR CO.
  9. Installation is the reverse of removal.
