Multi Function Switch: Inspection

Check BCM input/output specification of multifunction switch using the scan tool. If the specification is abnormal, replace the head lamp or wiper switch.
If diagnosis is required on the multifunction switch, select model and "BCM"

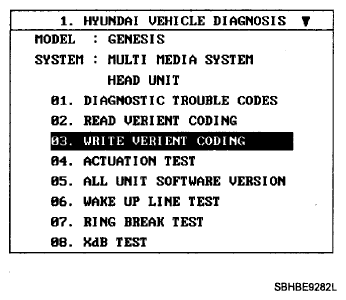

Fig 1: Scan Tool Display - Write Variant Coding
Courtesy of HYUNDAI MOTOR CO.

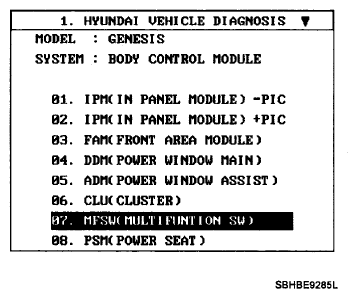

Fig 2: Scan Tool Display - MFSW
Courtesy of HYUNDAI MOTOR CO.

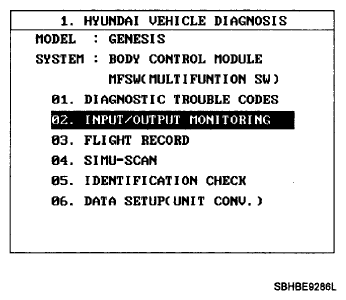

Select "Input/output monitoring".

Fig 3: Scan Tool Display - Select "Input/Output Monitoring"
Courtesy of HYUNDAI MOTOR CO.

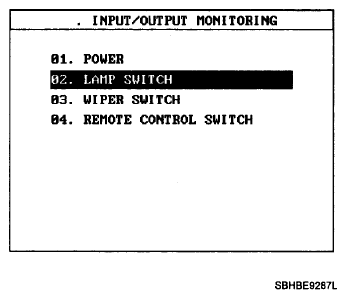

Check the input/output condition of "Lamp switch".

Fig 4: Scan Tool Display - "Lamp Switch" (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Scan Tool Display - "Lamp Switch" (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

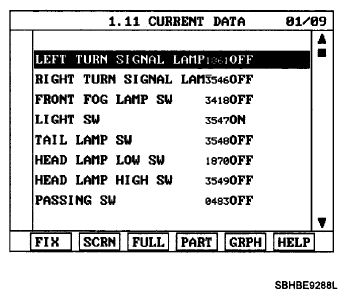

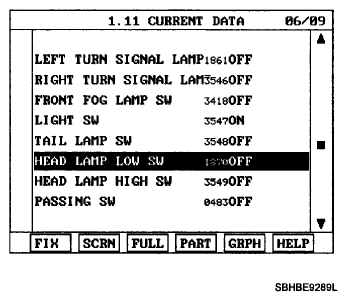

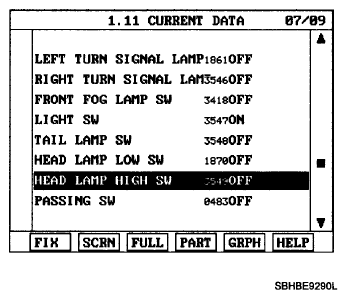

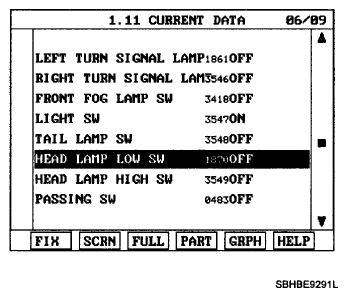

Check the input/output condition of "LAMPS".

Fig 6: Scan Tool Display - Condition Of "Lamps" (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Scan Tool Display - Condition Of "Lamps" (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

Fig 8: Scan Tool Display - Condition Of "Lamps" (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

Fig 9: Scan Tool Display - Condition Of "Lamps" (4 Of 2)
Courtesy of HYUNDAI MOTOR CO.

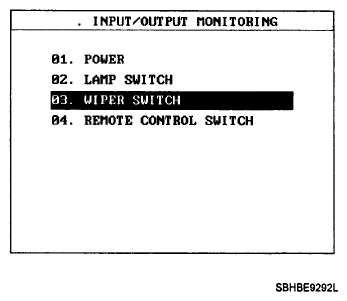

Check the input/output condition of "WIPER".

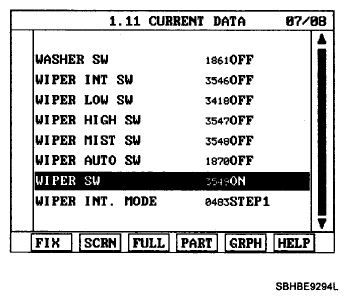

Fig 10: Scan Tool Display - Wiper SW
Courtesy of HYUNDAI MOTOR CO.

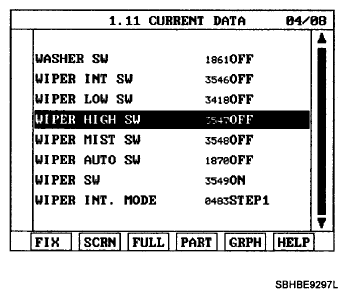

Fig 11: Scan Tool Display - Wiper High SW
Courtesy of HYUNDAI MOTOR CO.

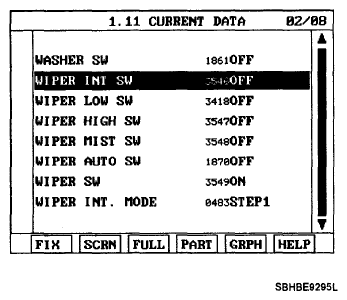

Fig 12: Scan Tool Display - Wiper INT SW
Courtesy of HYUNDAI MOTOR CO.

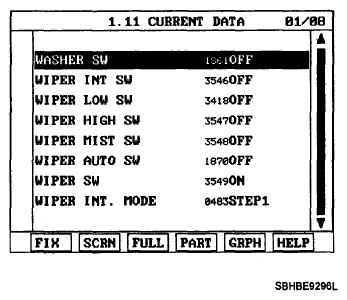

Fig 13: Scan Tool Display - Washer SW
Courtesy of HYUNDAI MOTOR CO.

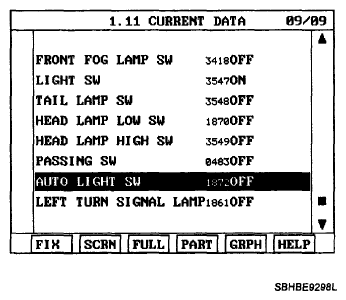

Check the input/output condition of "AUTO LIGHT".

Fig 14: Scan Tool Display - Auto Light SW
Courtesy of HYUNDAI MOTOR CO.
To check the DTC of the multifunction switch, select "DIAGNOSTIC TROUBLE CODES"

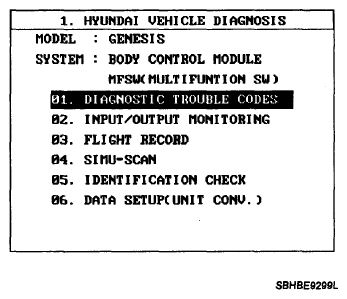

Fig 15: Scan Tool Display - Select "Diagnostic Trouble Codes"
Courtesy of HYUNDAI MOTOR CO.
