Reverse Control By Anti-pinch (Safety) Function

When the safety function is active, ECU stops all sort of auto-up function at once and executes the reverse as mentioned below. Measuring manner of the reverse distance: Along the B-pillar (Refer to the SWITCH STATE DESCRIPTION CHART (PANIC MODE)  table ).

1. Panic Mode
   SWITCH STATE DESCRIPTION CHART (PANIC MODE)



   Switch state	Switch state when safety is active	Window operation	Next switch input/window operation state			Next switch input
   			Next input comes after	Switch state	Window operation
   Express Up	Hold switch (Express up)	Safety active position + "L"	Δ t ≤ 5 sec	2nd stage (Auto up)	Manual Up	Inhibit Panic mode
   				2nd stage (Auto down)	Auto Down
   			Δ t ≤ 5 sec	2nd stage (Auto up)	Inhibit Panic mode
   				2nd stage (Auto down)
   	Neutral	Full reverse

   "L": Panic reverse distance (25mm)

2. Auto Up

   Reverse distance

   1. Anti-pinch function occurs < 250mm: ~300mm from top rubber seal
   2. Anti-pinch function occurs > 250mm: Approx. 50mm from the position where the anti-pinch function becomes activated.

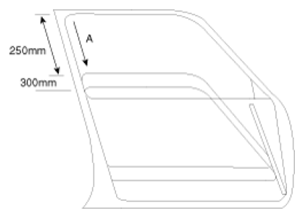

   Fig 1: Identifying Reverse Distance Of Anti-Pinch (Safety)

   Courtesy of HYUNDAI MOTOR CO.

   A: Measure of reverse distance Measure according to leaning angle of B-pillar frame.

3. Reverse Operation Range

   Type A: 4mm a mm (Maximal travel - 100mm)

   a: Front (about 346mm), Rear (about330mm)

   NOTE: the range of 4mm ~ 300mm, Safety function follows the regulation.
