Troubleshooting
>>
Chart 1
Chart 1

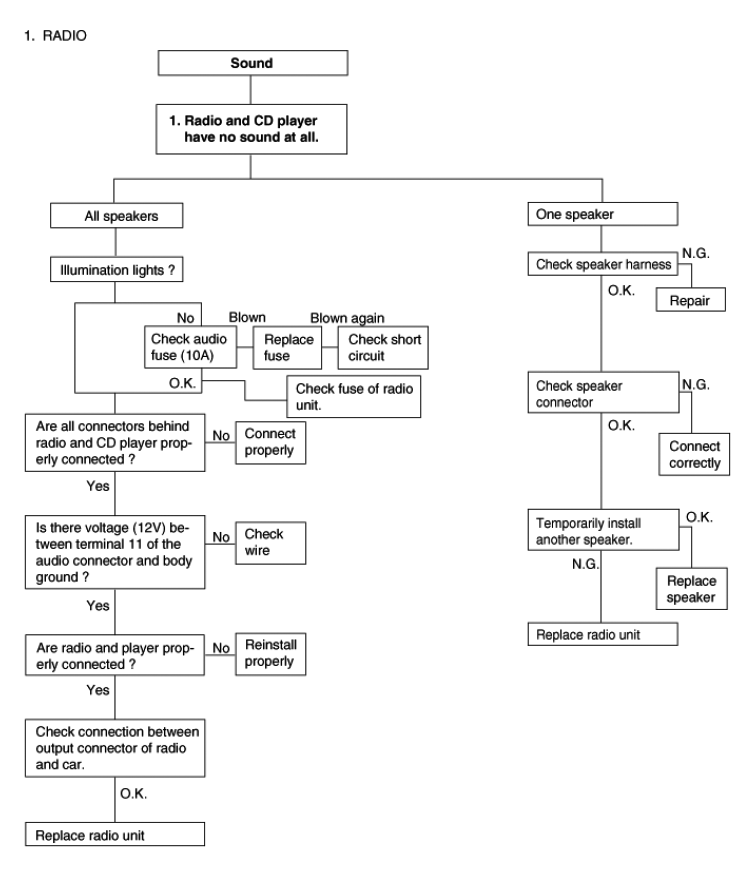

Fig 1: Radio Troubleshooting Chart
Courtesy of HYUNDAI MOTOR CO.

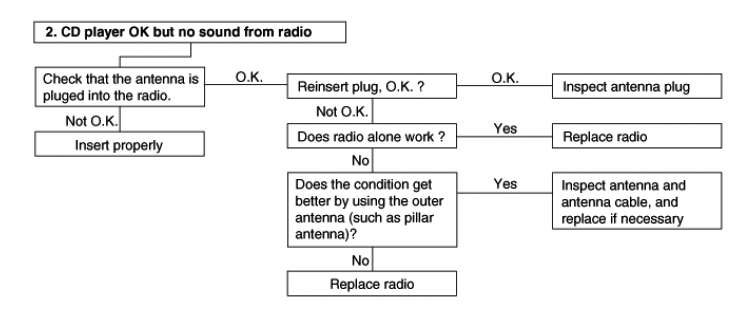

Fig 2: Troubleshooting Chart - CD Player OK But No Sound From Radio
Courtesy of HYUNDAI MOTOR CO.

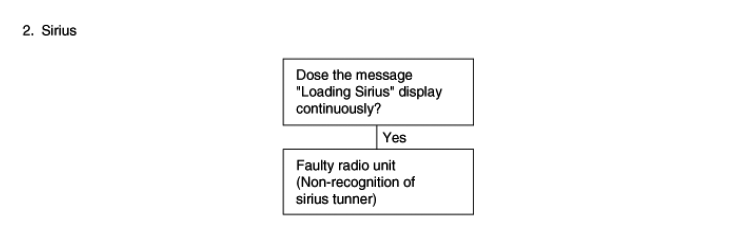

Fig 3: Troubleshooting Chart - Sirius (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

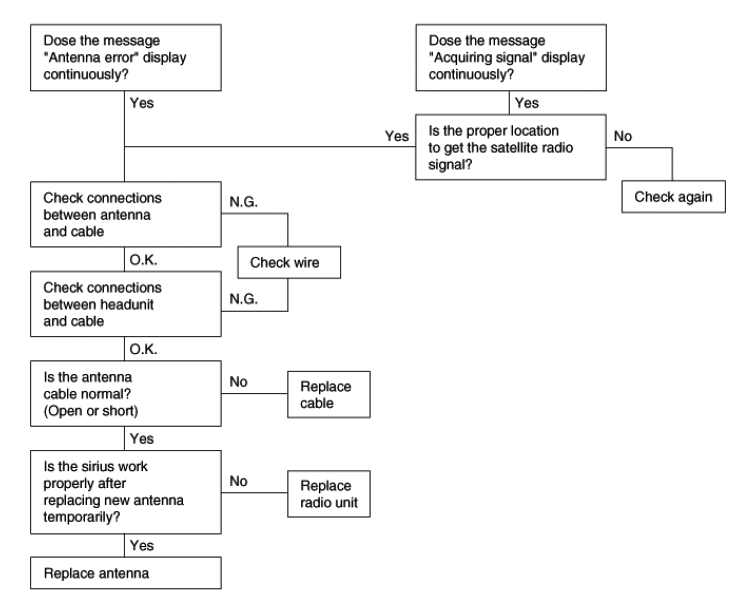

Fig 4: Troubleshooting Chart - Sirius (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
