ESC (Electronic Stability Control) System: Components

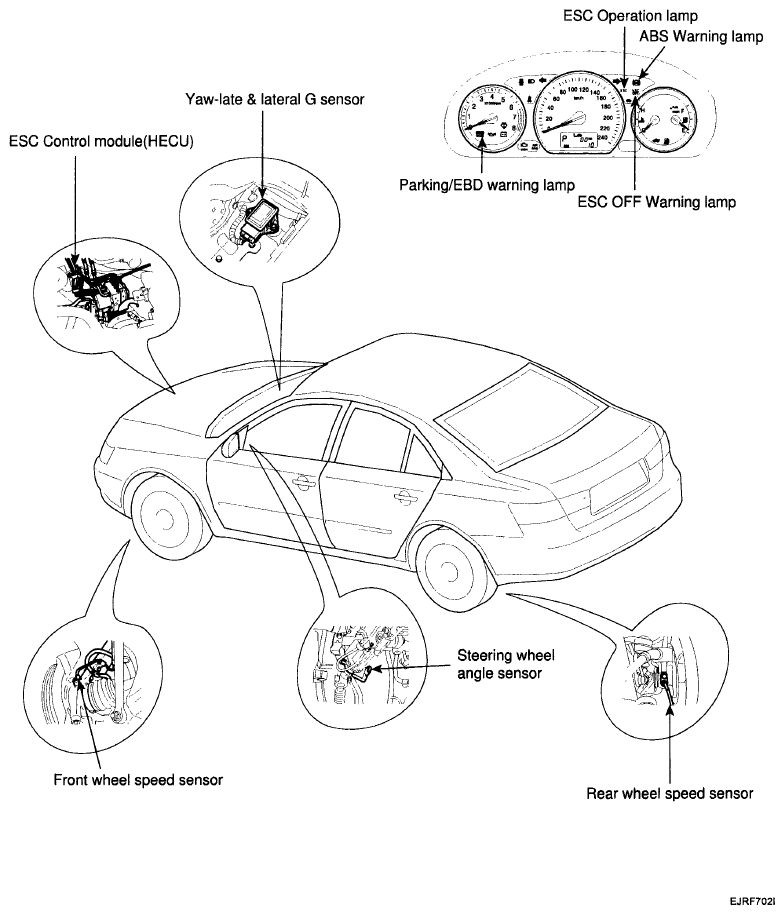

Fig 1: Identifying ESC Components

G06109205

Courtesy of HYUNDAI MOTOR CO.
