Monitor Scantool Data

Check status
1. IGN "ON" & Engine "OFF"
2. Monitor the "ECM, KEY and Smartra Status" Parameter on the Scantool.
  Specification : 'LEARNT'

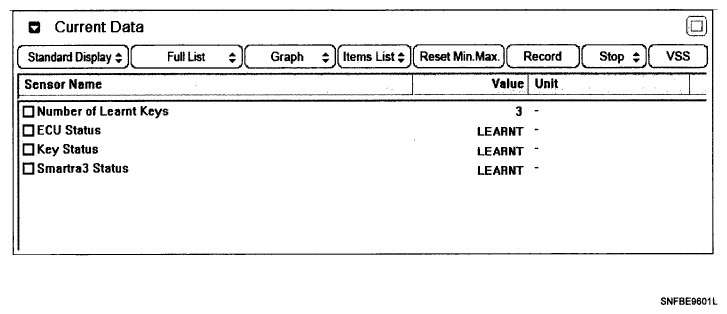

  Fig 1: Current Data Chart
  Courtesy of HYUNDAI MOTOR CO.
3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the PCM or SMARTRA. And This DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "COMPONENT INSPECTION " Procedure.
