Automatic Transmission: Components

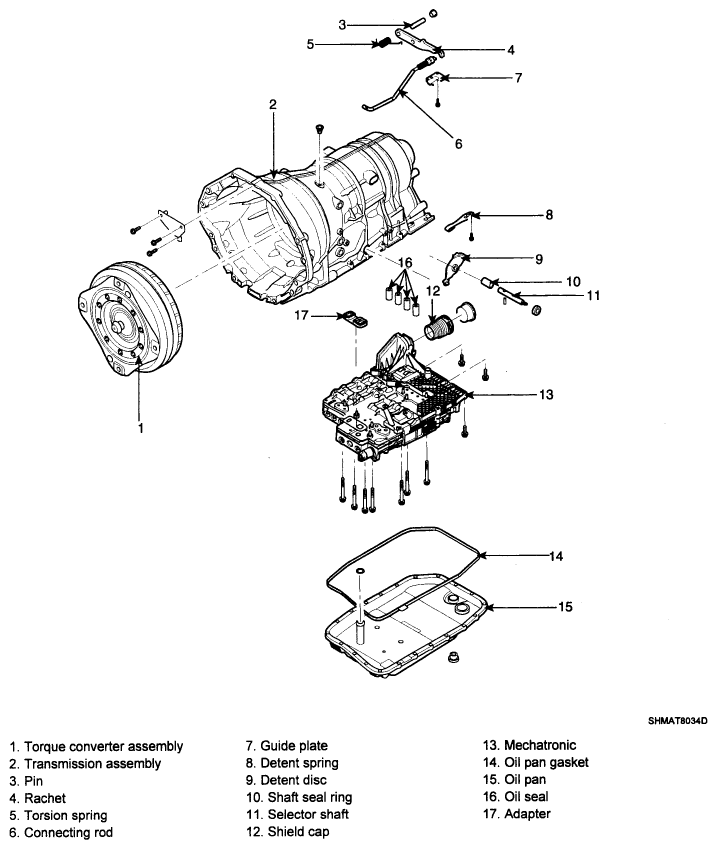

Fig 1: Identifying Automatic Transmission Components

G06106690

Courtesy of HYUNDAI MOTOR CO.
