Repair Procedures: Inspection

  1. Operate the switch and check for continuity between the terminals.
  2. If continuity is not as specified, replace the switch.

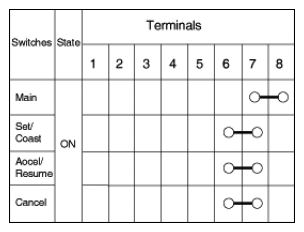

    Fig 1: Terminal Continuity Chart
    G06863111Courtesy of HYUNDAI MOTOR CO.
