Supplemental Restraint System Control Module Harness Connector End Views (Advanced)

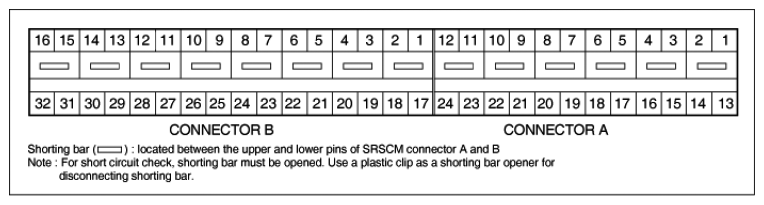

Fig 1: Supplemental Restraint System Control Module Harness Connector End Views (Advanced)
G06863820Courtesy of HYUNDAI MOTOR AMERICA
