Schematic Diagram

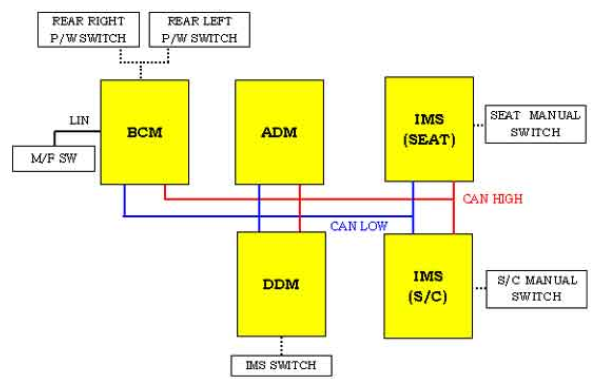

Fig 1: CAN Communication Diagram

G06803460

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Lin Transmission Schematic Diagram

G06803461

Courtesy of HYUNDAI MOTOR CO.
