Trunk Lid Open Switch Replacement

  1. Remove the front door trim.
  2. Loosen the mounting screw, then remove the trunk lid open switch (A).

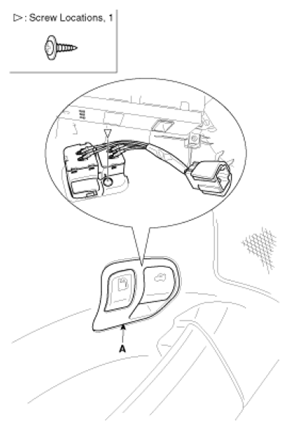

    Fig 1: Identifying Trunk Lid Open Switch With Mounting Screw
    G06802071Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
