Schematic Diagram

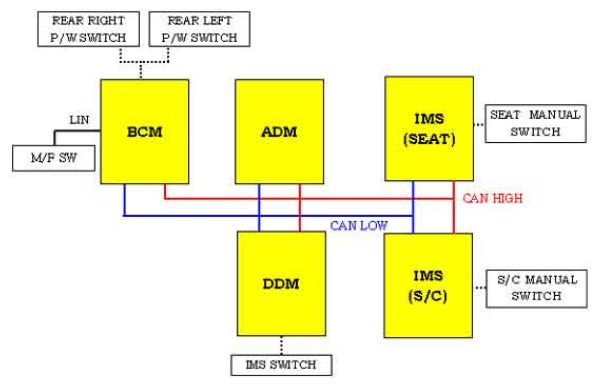

Fig 1: CAN Communication Diagram
G06803236Courtesy of HYUNDAI MOTOR CO.

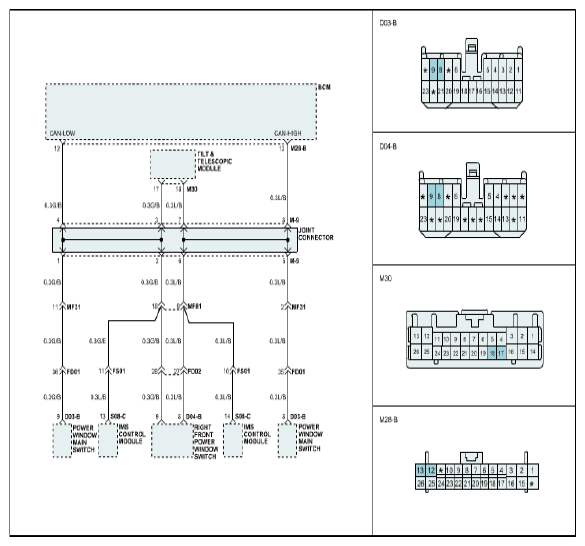

Fig 2: Assist Door Module Schematic
G06803237Courtesy of HYUNDAI MOTOR CO.

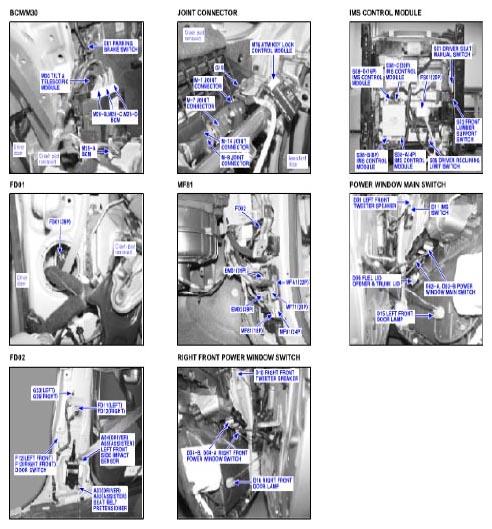

Fig 3: Identifying Connectors
G06803238Courtesy of HYUNDAI MOTOR CO.
