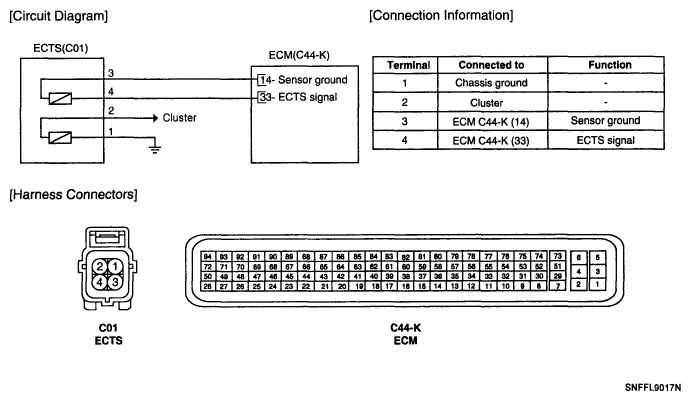

Home >> Hyundai >> 2009 >> Sonata GLS, 2.4 C, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System) - 2.4L >> Engine Coolant Temperature Sensor (ECTS) >> Circuit diagram
