Lower Panel Replacement

WARNING: This page is about a different car, the 2007 Hyundai Entourage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crash pad side cover. (Refer to COVER REPLACEMENT )
  2. Remove the fuse box cover (A).
    Fig 1: Identifying Fuse Box Cover
    G05324603Courtesy of HYUNDAI MOTOR CO.
  3. Remove the parking brake lever (C).
  4. After loosening the crash pad lower panel mounting screws, then remove the lower panel (B).

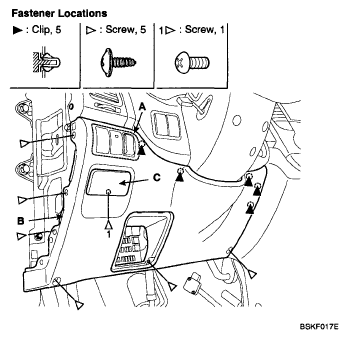

    Fig 2: Identifying Parking Brake Lever And Crash Pad Lower Panel Mounting Screws
    G05324605Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the connector (A).
    Fig 3: Identifying Connector
    G05324604Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
