Power Steering Gear Box: Installation

  1. Push in the power steering gear box assembly in the right side of the vehicle.

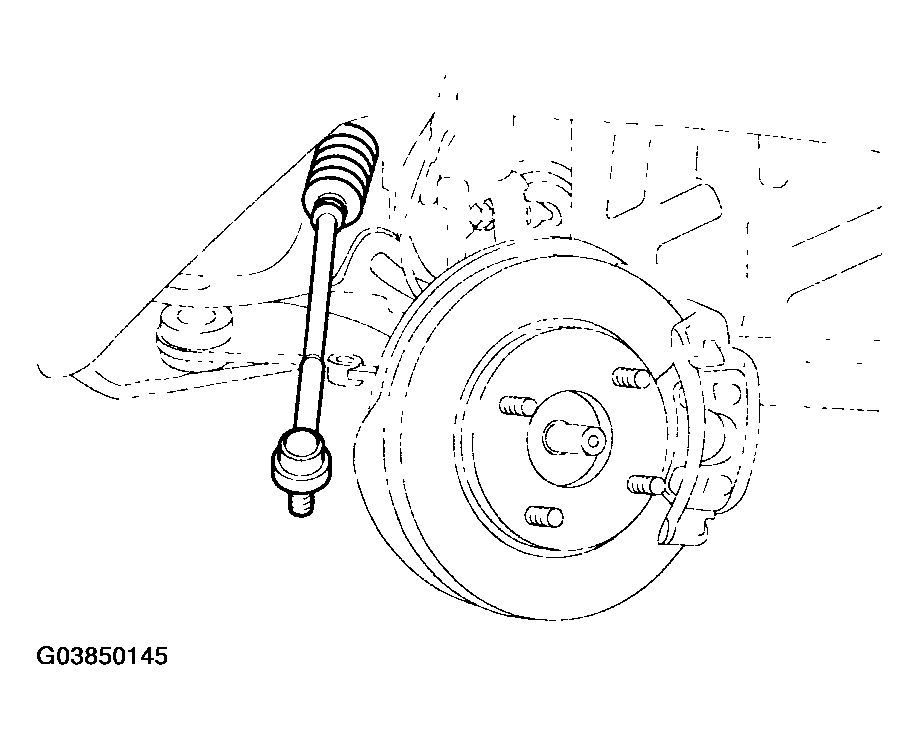

    Fig 1: Pushing In Power Steering Gear Box Assembly In Right Side Of Vehicle
    G03850145Courtesy of HYUNDAI MOTOR CO.
  2. Install the dust cover mounting plate.
  3. Connect the dust cover to its mounting plate with a new strap.
  4. Connect the steering gear box assembly to the steering column and shaft assembly.
  5. Installation is the reverse of removal.
  6. After installation, bleed the system.
