Disassembly And Assembly
Disassembly And Assembly

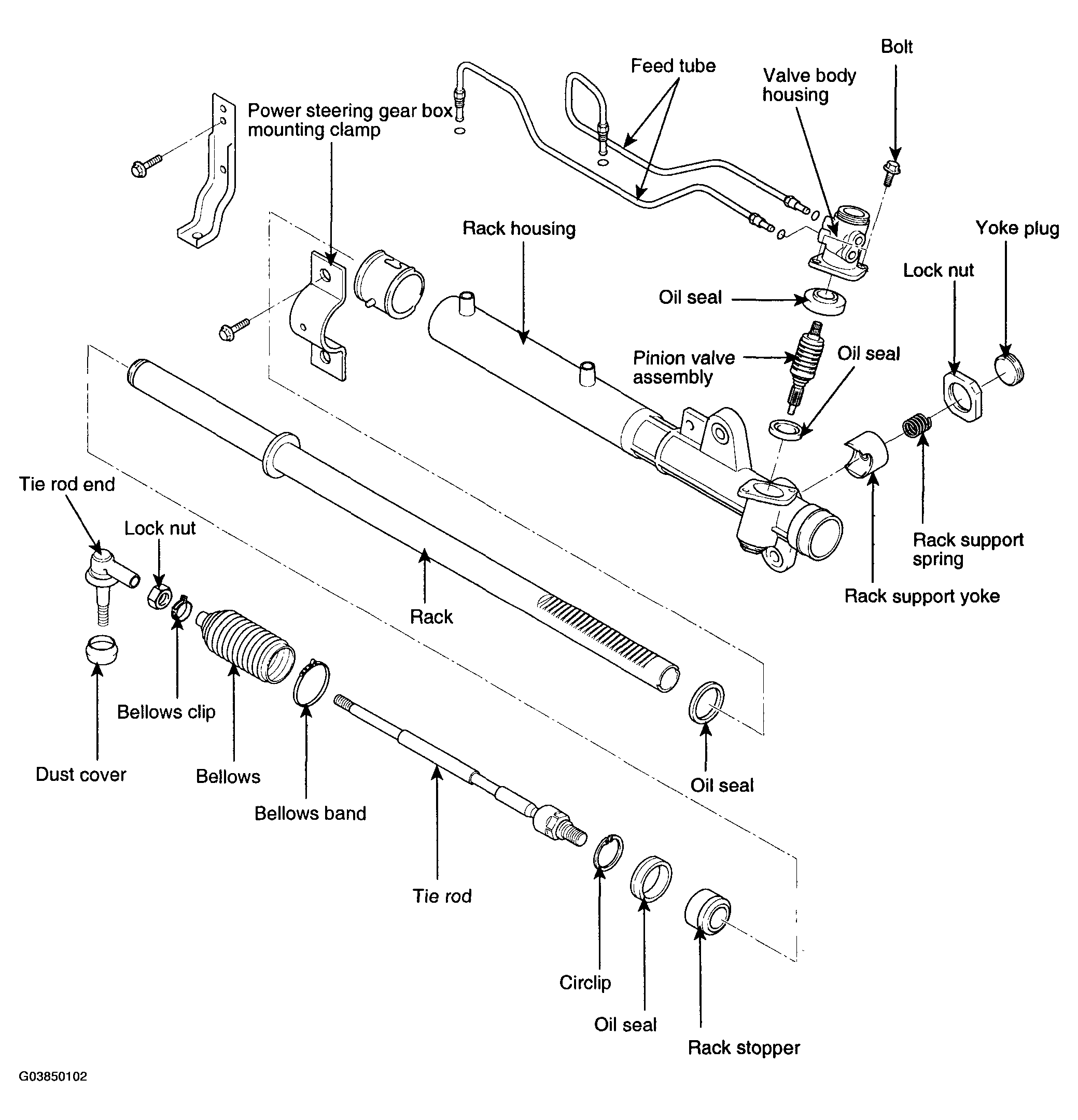

Fig 1: Disassembled View Of Power Steering Gear Box
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
