Audio Unit: Removal: Notes

  1. Disconnect the negative(-) battery terminal.
  2. Remove the center fascia panel and disconnect the wire connectors.

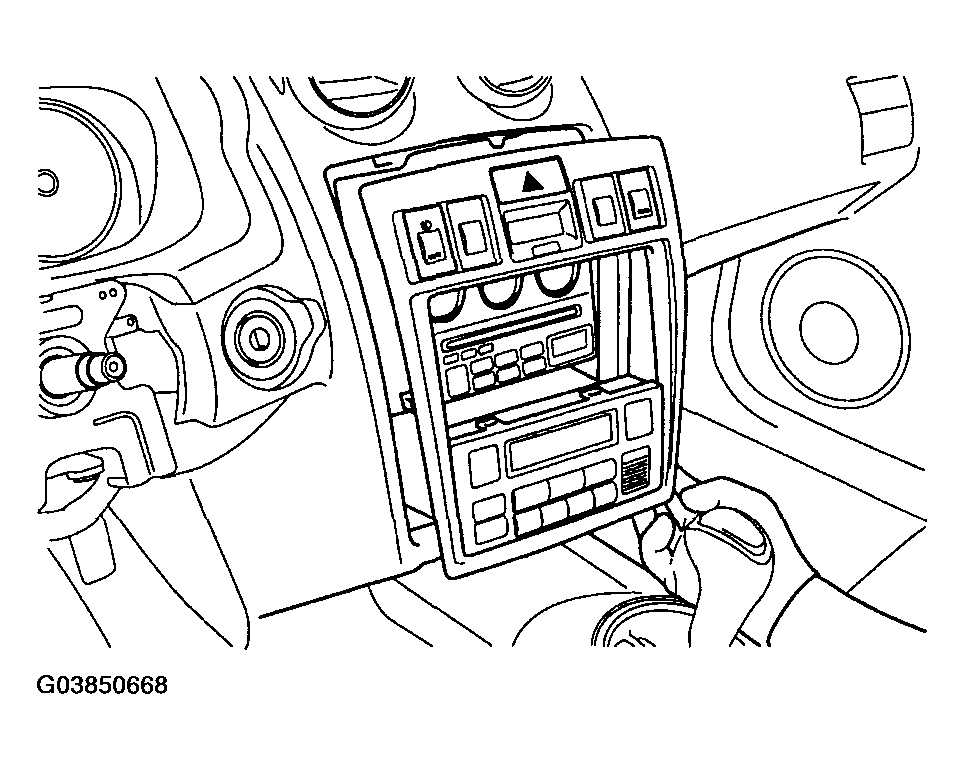

    Fig 1: Removing Center Fascia Panel
    G03850668Courtesy of HYUNDAI MOTOR CO.
  3. Remove the 4 screws holding the audio and multi-gauge unit then remove the audio assembly.

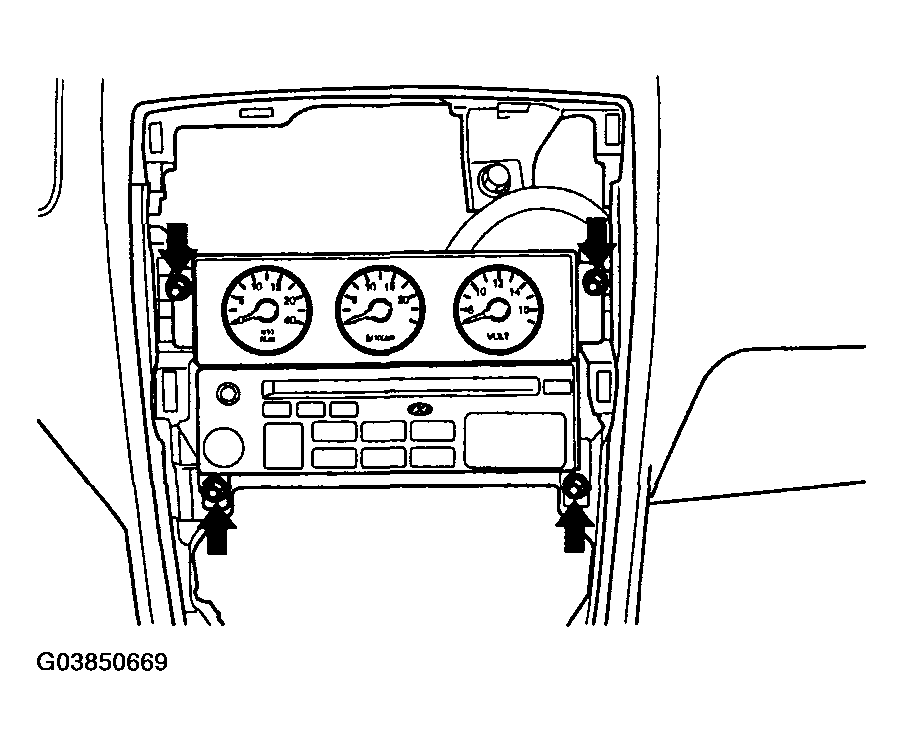

    Fig 2: Removing 4 Screws Holding Audio & Multi-Gauge Unit
    G03850669Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
