Audio Unit: Components

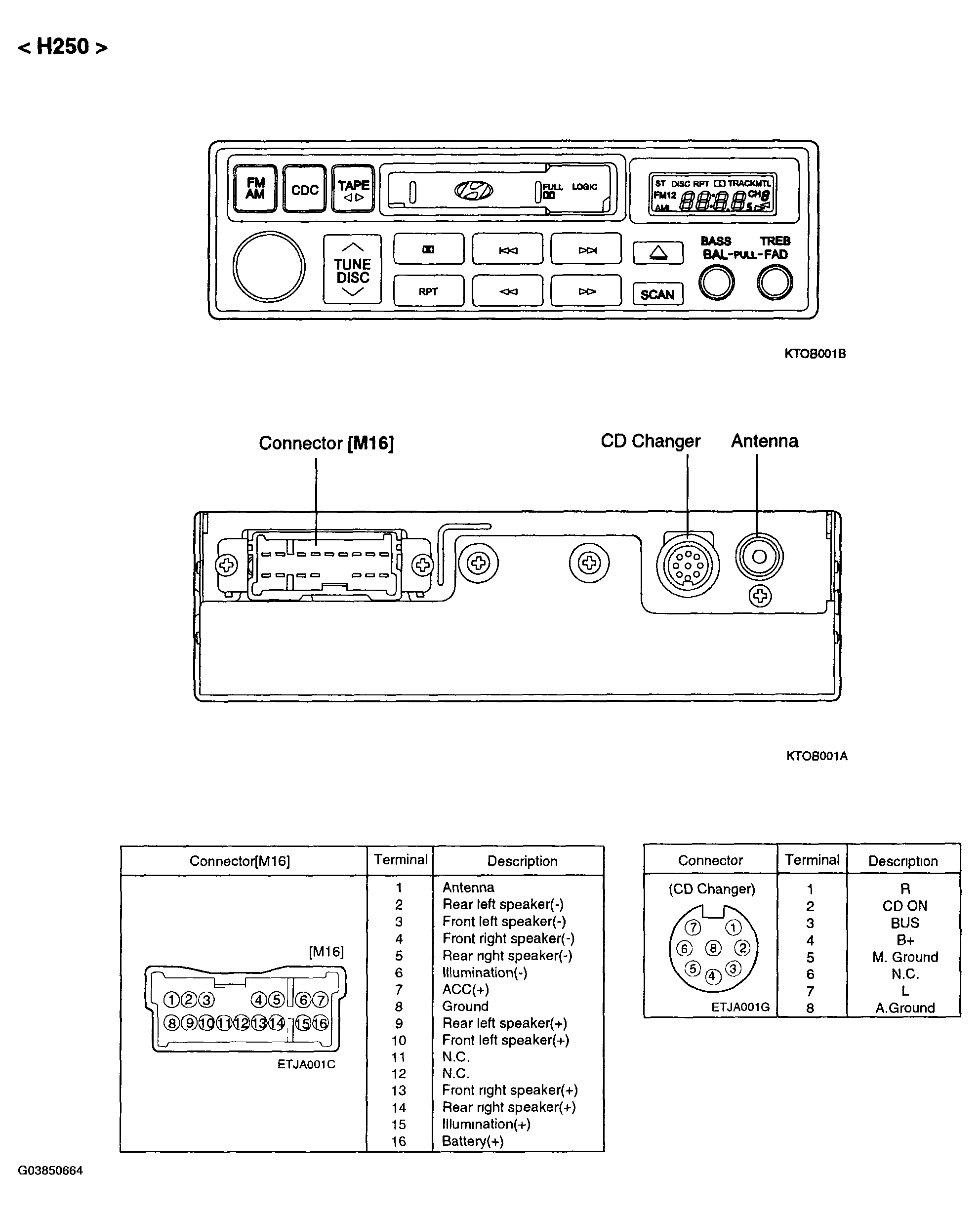

Fig 1: Identifying Audio Unit Components - H250

Courtesy of HYUNDAI MOTOR CO.

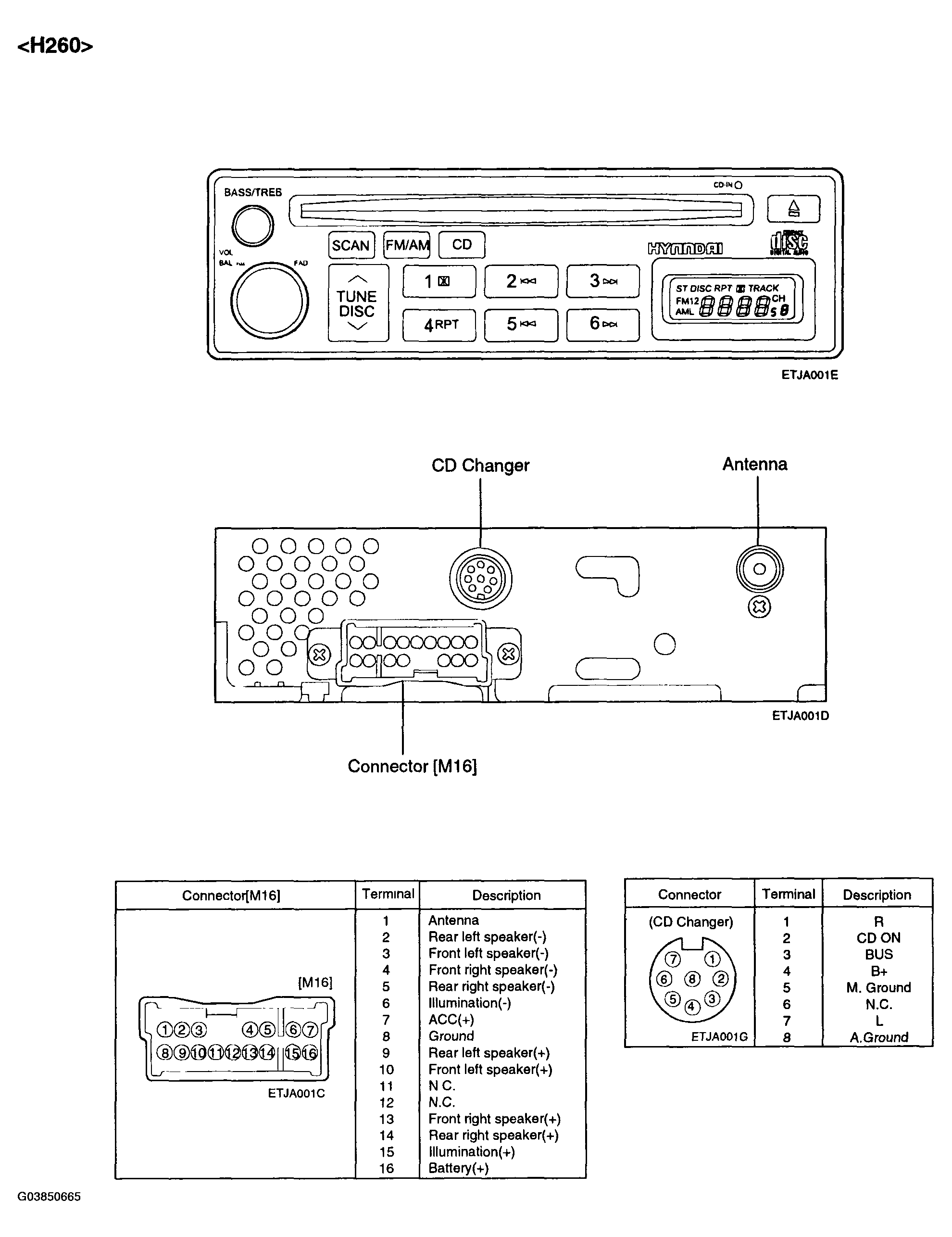

Fig 2: Identifying Audio Unit Components - H260

Courtesy of HYUNDAI MOTOR CO.

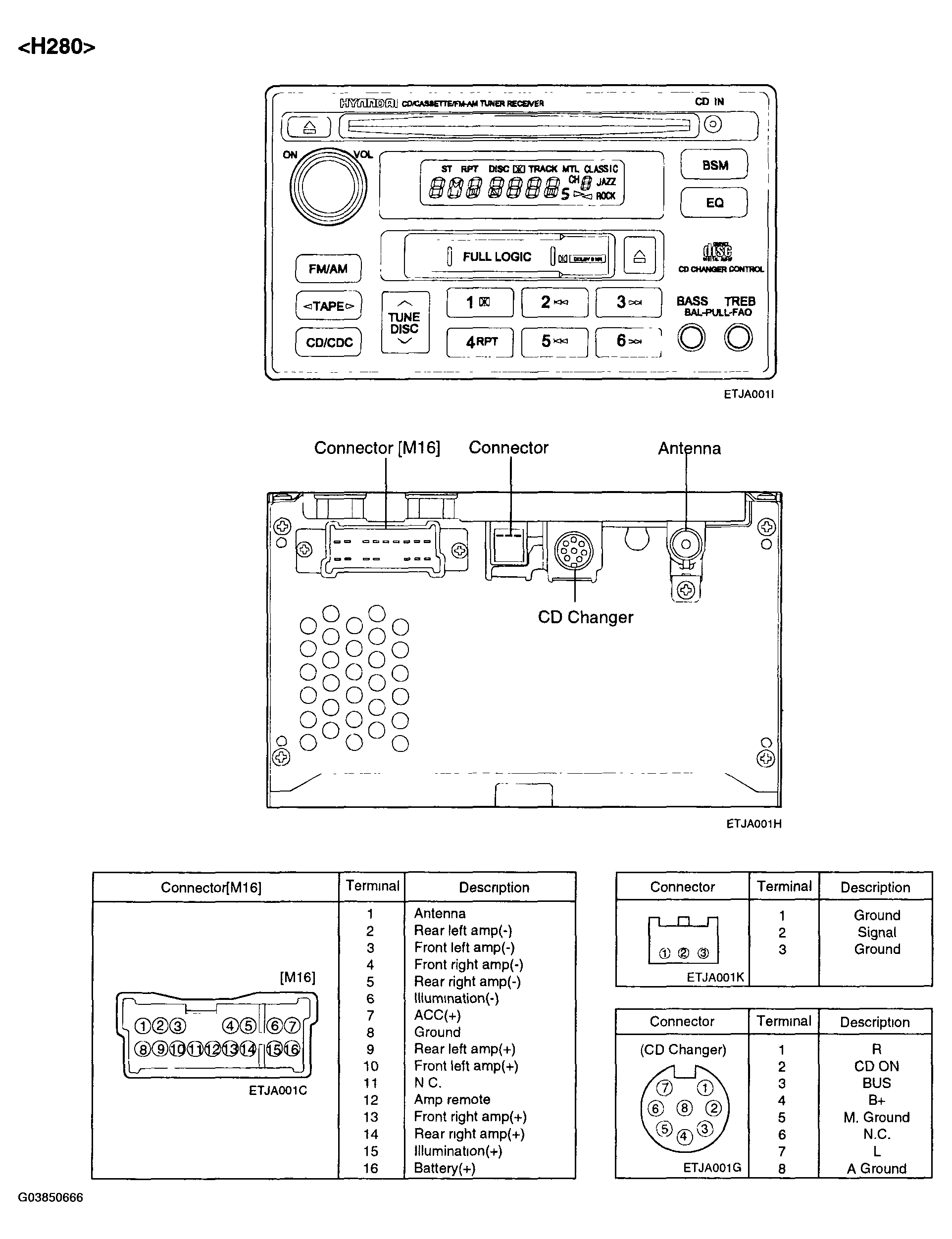

Fig 3: Identifying Audio Unit Components - H280

Courtesy of HYUNDAI MOTOR CO.

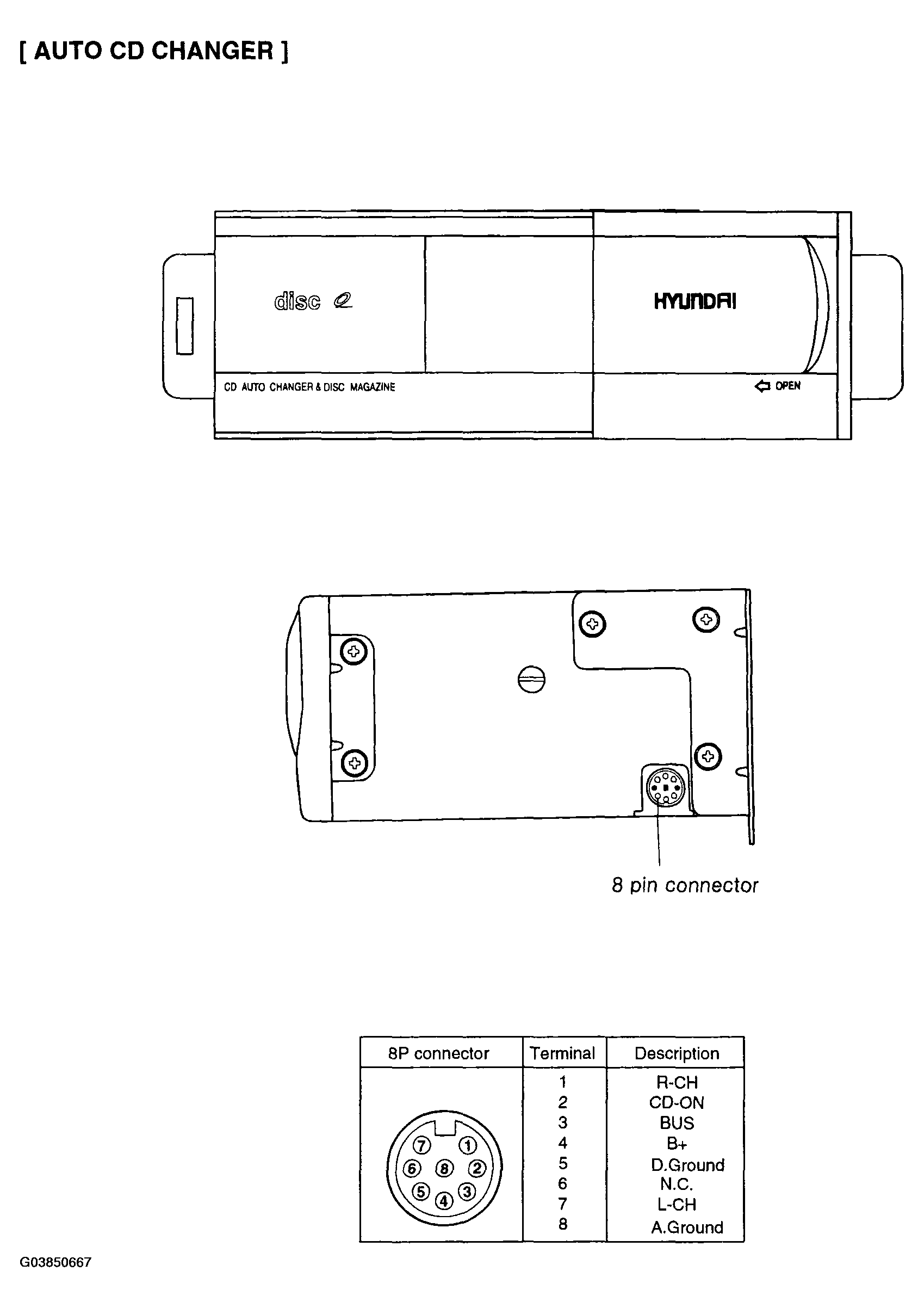

Fig 4: Identifying Audio Unit Components - Auto CD Changer

Courtesy of HYUNDAI MOTOR CO.
