Audio Remote Control: Replacement

  1. Remove the driver airbag module. (Refer to REMOVAL )

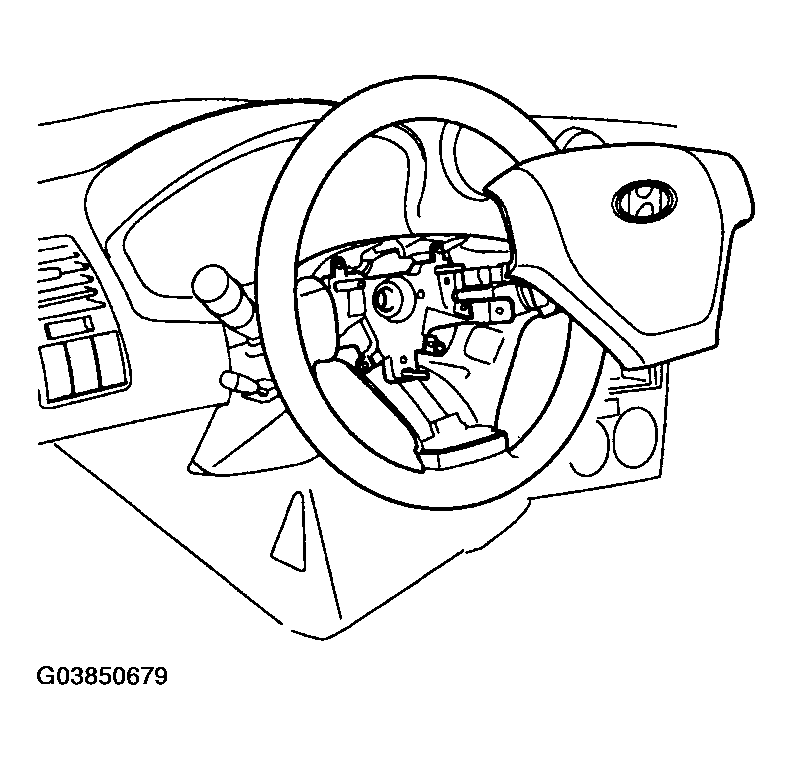

    Fig 1: Removing Driver Airbag Module
    G03850679Courtesy of HYUNDAI MOTOR CO.
  2. Remove the audio remote control switch (B) after remove the steering wheel remote control switch connector (A) and 2 screws.

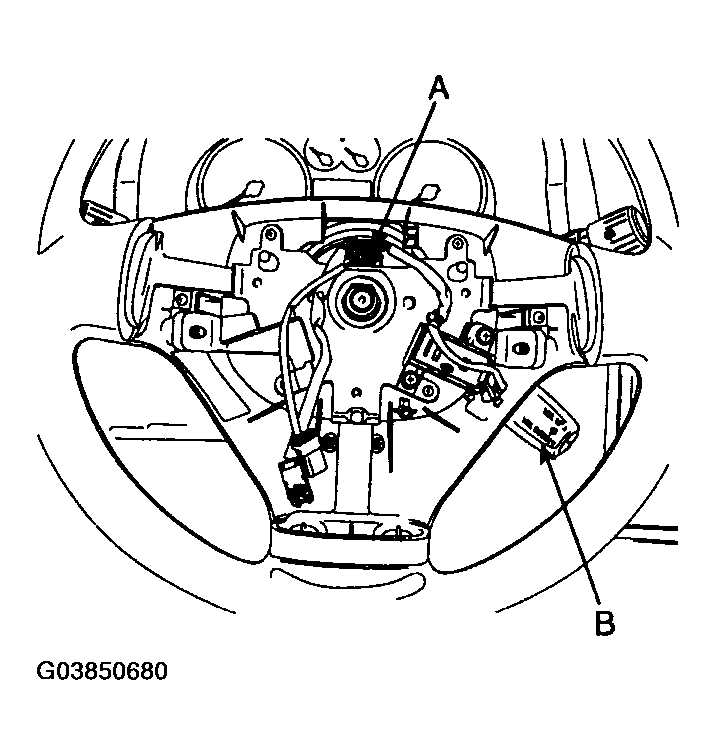

    Fig 2: Removing Steering Wheel Remote Control Switch Connector & Steering Wheel Remote Control Switch Connector
    G03850680Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
