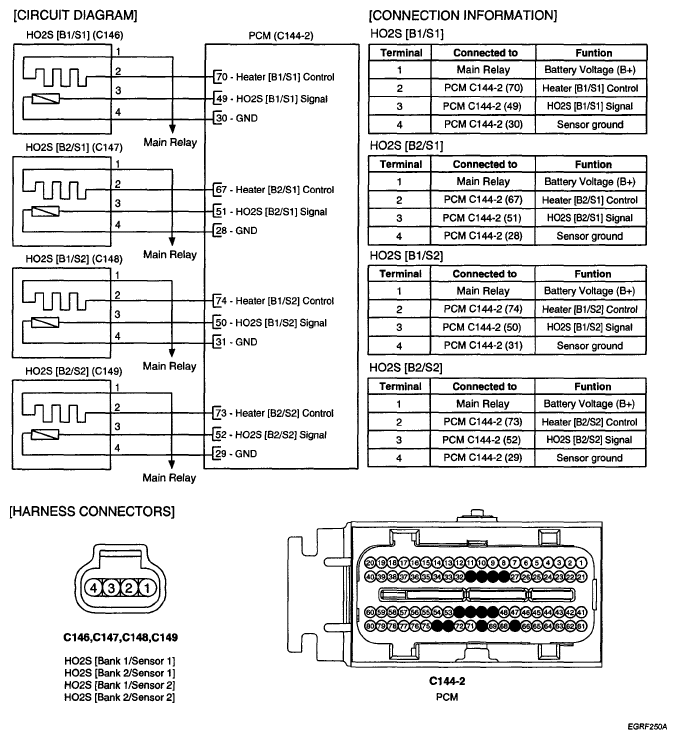

Home >> Hyundai >> 2007 >> Sonata Limited >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3.3L) (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P2A00 O2 Sensor Not Ready (Bank 1 / Sensor 1) >> Schematic Diagram
