Home >> Hyundai >> 2007 >> Sonata GLS, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle System (M5GF2) >> Shift Fork >> Components

Shift Fork: Components

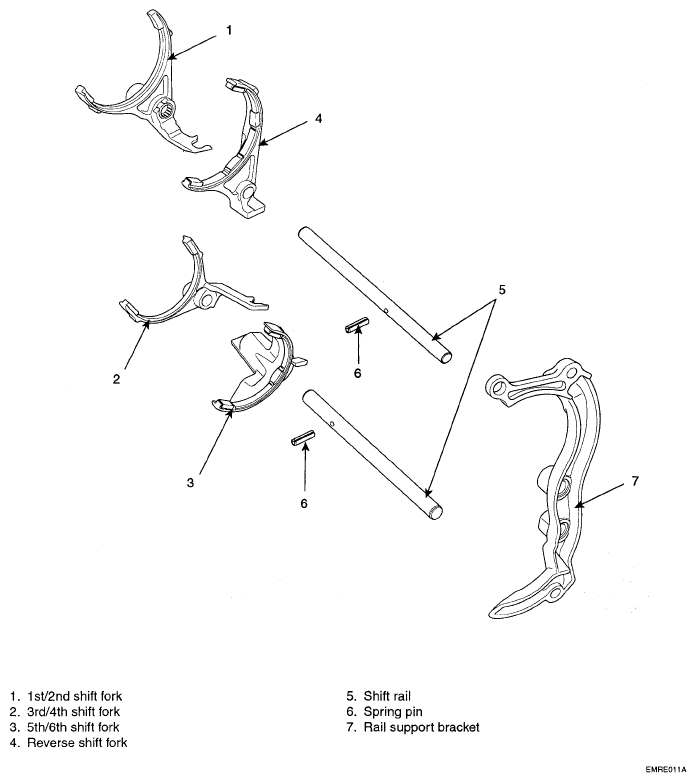

Fig 1: Exploaded View Of Shift Fork Components

G04891796

Courtesy of HYUNDAI MOTOR CO.
