Home >> Hyundai >> 2007 >> Sonata GLS, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle System (M5GF2) >> Manual Transaxle >> Components

Manual Transaxle: Components

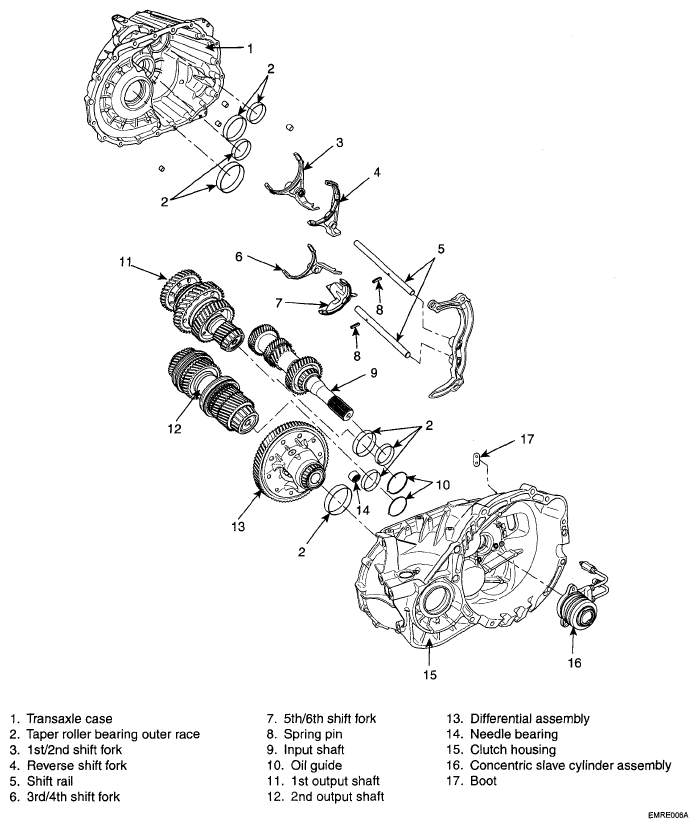

Fig 1: Exploded View Of Manual Transaxle Components

G04891653

Courtesy of HYUNDAI MOTOR CO.
