Home >> Hyundai >> 2007 >> Sonata GLS, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle System (M5GF2) >> Manual Transaxle System >> Input Shaft >> Components

Input Shaft: Components

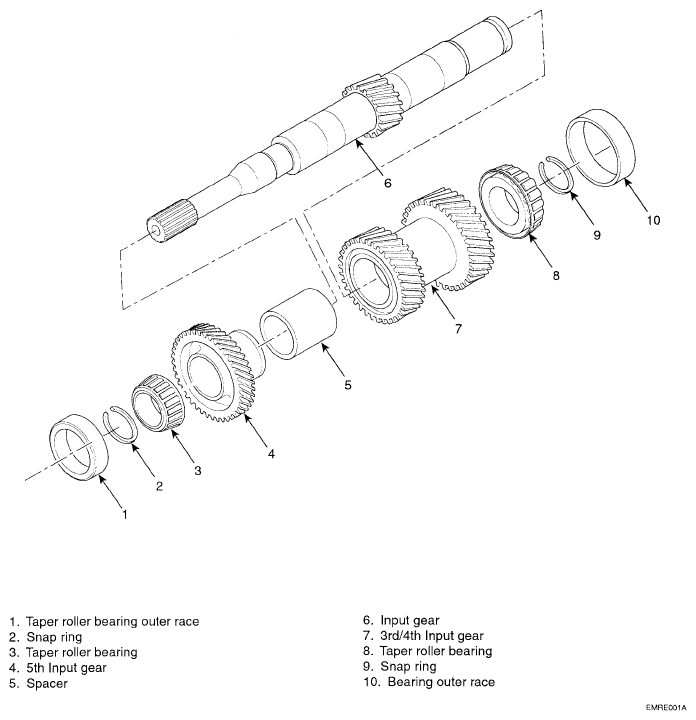

Fig 1: Exploded View Of Input Shaft Components

G04891637

Courtesy of HYUNDAI MOTOR CO.
