Manual Transaxle Shift Control: Components

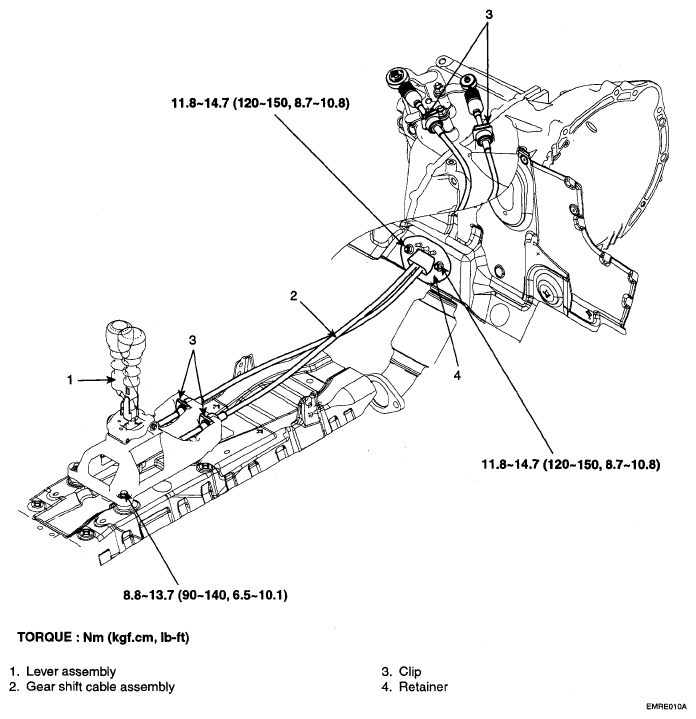

Fig 1: View Of Manual Transaxle Shift Control With Torque Specifications

G04891716

Courtesy of HYUNDAI MOTOR CO.
