Key Holder Replacement

  1. Remove the trunk lid trim (See TRUNK LID TRIM REPLACEMENT ).
  2. After loosening the mounting bolts, disconnect the connector (A).
  3. Remove key holder (B).

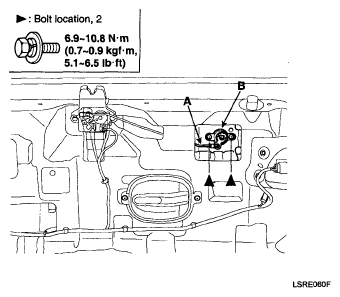

Fig 1: Connector, Key Holder And Bolt Location With Torque Specifications
G04892802Courtesy of HYUNDAI MOTOR CO.
