Transaxle Range (Tr) Switch: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner assembly.

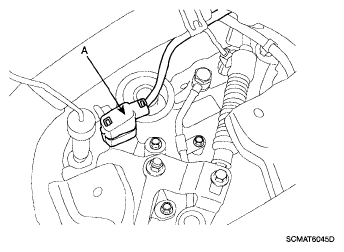

  4. Disconnect the inhibitor switch connector (A).
    Fig 1: Identifying Inhibitor Switch Connector
    G05348817Courtesy of HYUNDAI MOTOR CO.

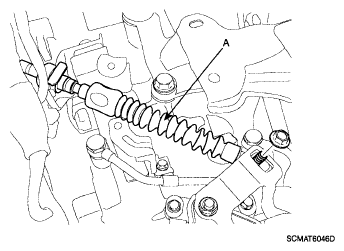

  5. Remove the control cable (A) from the manual control lever.
    Fig 2: Identifying Control Cable And Manual Control Lever
    G05348818Courtesy of HYUNDAI MOTOR CO.

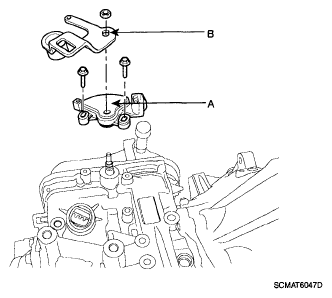

  6. Remove the inhibitor switch (A) and manual control lever (B).
    Fig 3: Identifying Inhibitor Switch And Manual Control Lever
    G05348819Courtesy of HYUNDAI MOTOR CO.
