Output Speed Sensor: Description

OUTPUT SPEED SENSOR DESCRIPTION CHART

Sensor type
  1. Type : HALL SENSOR
  2. Output voltage : DC 12V
  3. Current consumption : 22mA (Max)
Function
  1. Output shaft speed sensor: Detect the output shaft rpm (T/F DRIVE GEAR RPM) at the T/F drive gear
  2. Feedback control, clutch-clutch control, damper clutch control, shift range control, incorrect ratio control and sensor trouble detection signal.

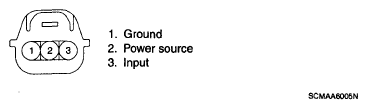

Connector
G05348808Courtesy of HYUNDAI MOTOR CO.
Fig 1: Identifying Input Speed Sensor
G05348806Courtesy of HYUNDAI MOTOR CO.
INPUT SPEED SENSOR DESCRIPTION CHART

Item Inspection item Standard value
Air gap Output shaft speed sensor 0.05in (1.3mm)
Sensor resistance Output shaft speed sensor Over 4 MΩ
Output voltage HIGH Over 4.8V
LOW Below 0.8V
