Mode Control Actuator Connector End View

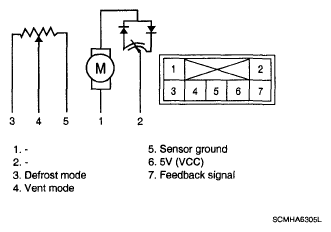

Fig 1: Mode Control Actuator Connector End View

G05353747

Courtesy of HYUNDAI MOTOR AMERICA
