Front Hub / Knuckle: Installation

  1. Installation is the reverse of removal.
CAUTION:
  • The driveshaft lock nut should be replaced with new ones.
  • After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

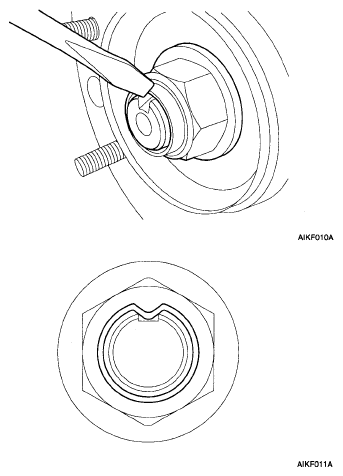

Fig 1: Staking Lock Nut Using Chisel And Hammer
G05322522Courtesy of HYUNDAI MOTOR CO.
