Auto Light Sensor: Replacement

Photo & auto light sensor inspection

  1. Disconnect the crash pad (Refer to CRASH PAD ).
  2. Remove the Photo & auto light sensor (B) from crash pad.

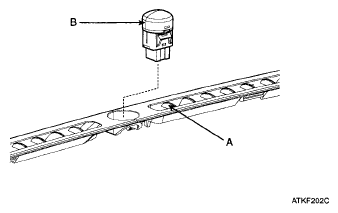

    Fig 1: Identifying Photo & Auto Light Sensor
    G05325453Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
