Servicing - Manual Transmission
>>
Manual Transaxle System
>>
Manual Transaxle
>>
Components (1)
>>
Notes
Components (1): Notes

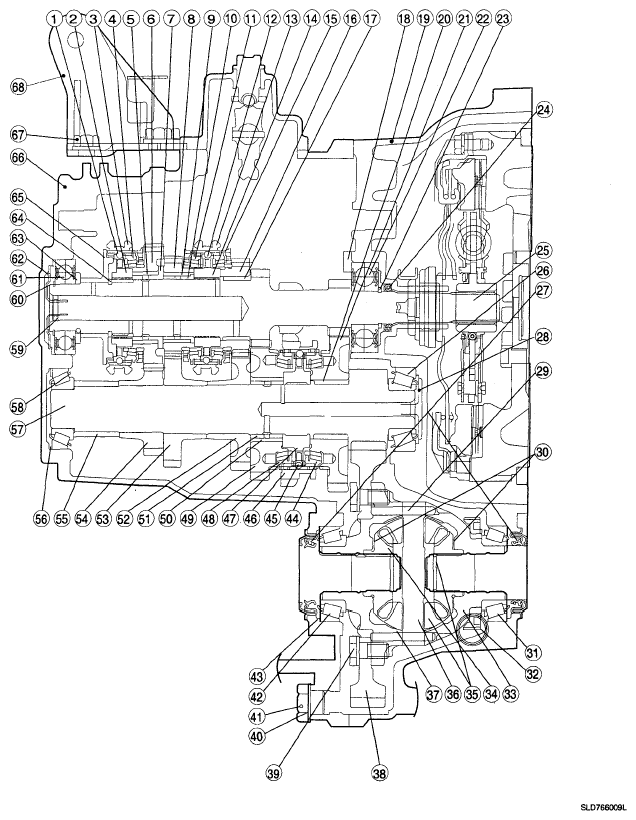

Fig 1: Identifying Manual Transaxle Components (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

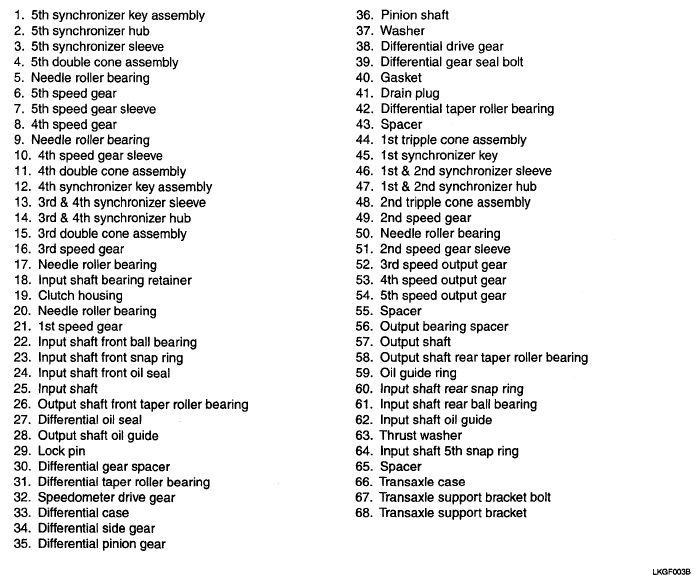

Fig 2: Identifying Manual Transaxle Components (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
