Manual Transaxle Shift Control System: Components(I): Notes

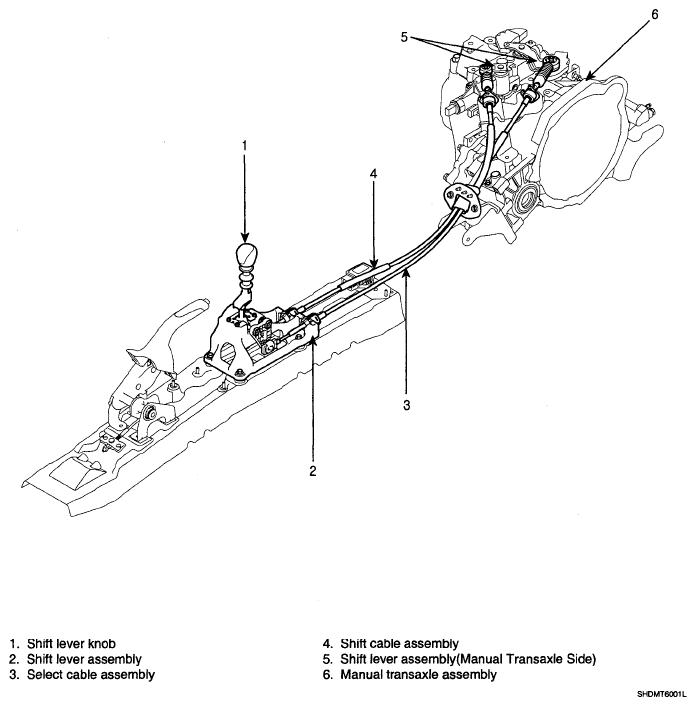

Fig 1: Identifying Manual Transaxle Shift Control System Components (1 Of 2)

G05364038

Courtesy of HYUNDAI MOTOR CO.
