Cruise Control Main Switch: Replacement

  1. Remove the air bag module assembly. (Refer to RESTRAINTS , STEERING SYSTEM )
  2. Disconnect the auto cruise control main switch connector.

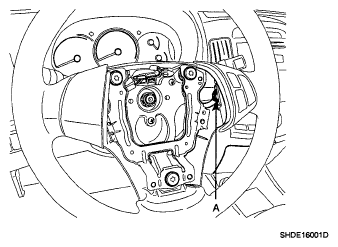

    Fig 1: Identifying Auto Cruise Control Main Switch Connector
    G05363653Courtesy of HYUNDAI MOTOR CO.
  3. Remove the auto cruise control main switch assembly.
  4. To install, reverse the removal procedure.
