Cruise Control Main Switch: Inspection

  1. Operate the switch and check for continuity between the terminals.
  2. If continuity is not as specified, replace the switch.

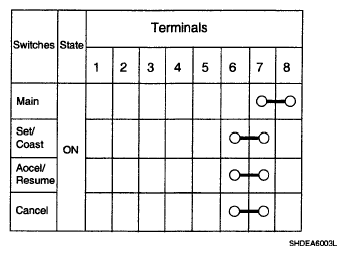

Fig 1: Terminals Continuity Chart
G05363654Courtesy of HYUNDAI MOTOR CO.
