Over Speed Warning

  1. CHIME BUZZER sounds when HI-SPEED WARNING SW of CLUSTER is ON under IGN 2 ON.
  2. CHIME BUZZER stops sounding if HI-SPEED signal is turned OFF.
  3. CHIME BUZZER stops sounding if IGN2 is OFF.

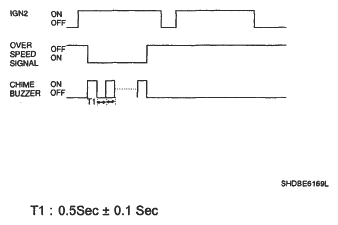

    Fig 1: Over Speed Warning Graph
    G05365393Courtesy of HYUNDAI MOTOR CO.
