Starter Solenoid Test

  1. Disconnect the field coil wire from the M-terminal of solenoid switch.
  2. Connect the battery as shown. If the starter pinion pops out, it is working properly. To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

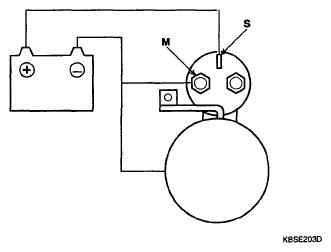

    Fig 1: Connecting Battery To Starter Solenoid
    G04879743Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the battery from the M terminal.

    If the pinion does not retract, the hold-in coil is working properly. To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

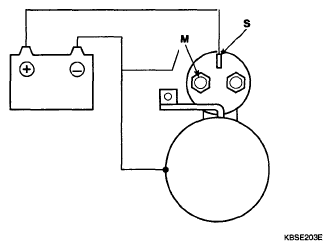

    Fig 2: Disconnecting Battery From M Terminal
    G04879744Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the battery also from the body. If the pinion retracts immediately, it is working properly. To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.

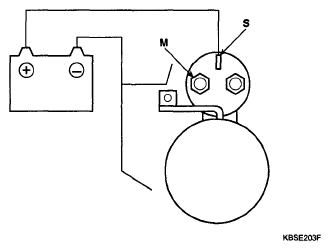

    Fig 3: Disconnecting Battery From Starter Solenoid Body
    G04879745Courtesy of HYUNDAI MOTOR CO.
