Cover Replacement

NOTE:

When prying with tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the crash pad side cover (A), crash pad center under cover (B).
1. Crash pad side cover.

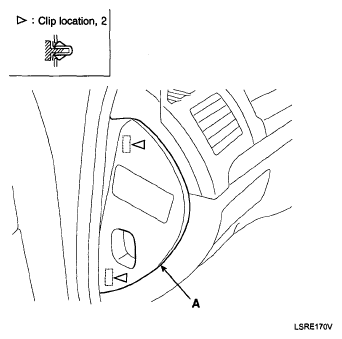

  Fig 1: Identifying Crash Pad Side Cover With Clip Location
  Courtesy of HYUNDAI MOTOR CO.
2. Front crash pad center under cover, LH
  - Remove the console assembly (See FLOOR CONSOLE REPLACEMENT ).

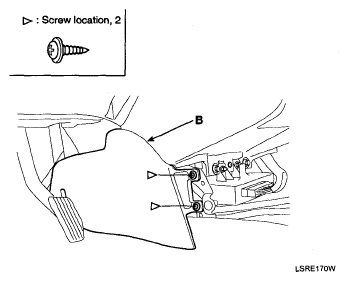

    Fig 2: Identifying Crash Pad Center Under Cover With Mounting Screw Location
    Courtesy of HYUNDAI MOTOR CO.
  - Front crash pad center under cover, RH
    - Remove the console assembly (See FLOOR CONSOLE REPLACEMENT ).

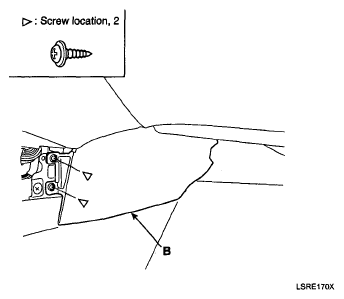

    Fig 3: Identifying Crash Pad Center Under Cover With Mounting Screw Location
    Courtesy of HYUNDAI MOTOR CO.
