Glove Box Replacement

  1. Disconnect the damper (B) from the glove box (A).

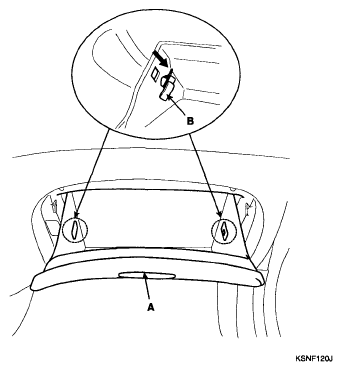

    Fig 1: Locating Damper And Glove Box
    G04802771Courtesy of HYUNDAI MOTOR CO.
  2. Remove the glove box (C).

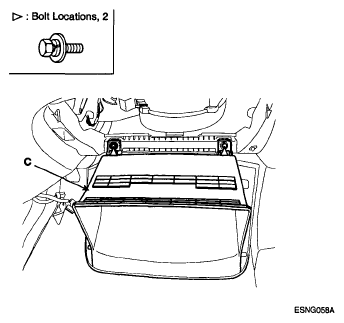

    Fig 2: Locating Glove Box
    G04802772Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
