Center Facia Panel Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the center facia panel (A).

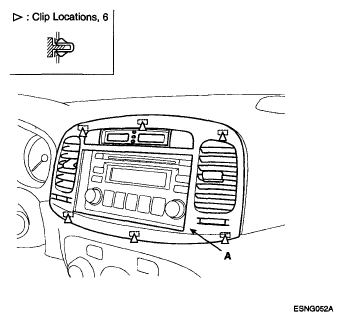

    Fig 1: Locating Center Facia Panel Clips
    G04802760Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the connector (A), then remove the center facia panel (B).

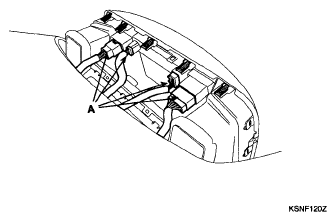

    Fig 2: Locating Connector And Center Facia Panel
    G04802761Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
