Audio Unit: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia upper panel (A).

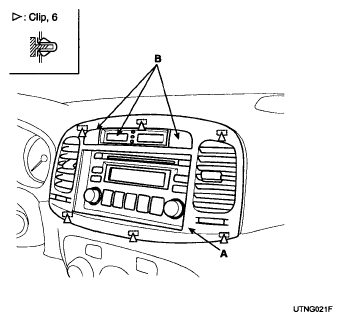

    Fig 1: Identifying Center Facia Upper Panel
    G04802850Courtesy of HYUNDAI MOTOR CO.
  3. Remove the connectors of digital clock and hazard switch (B).
  4. Remove the mounting screws then remove the audio unit (A).
    Fig 2: Identifying Hazard Switch And Audio Unit
    G04802851Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
