Engine Compartment Junction Box: Notes

NOTE: Engine compartment junction box is located on driver's side of engine compartment, next to battery. See Fig 1.

Fig 1: Locating Engine Compartment Junction Box

Courtesy of HYUNDAI MOTOR CO.

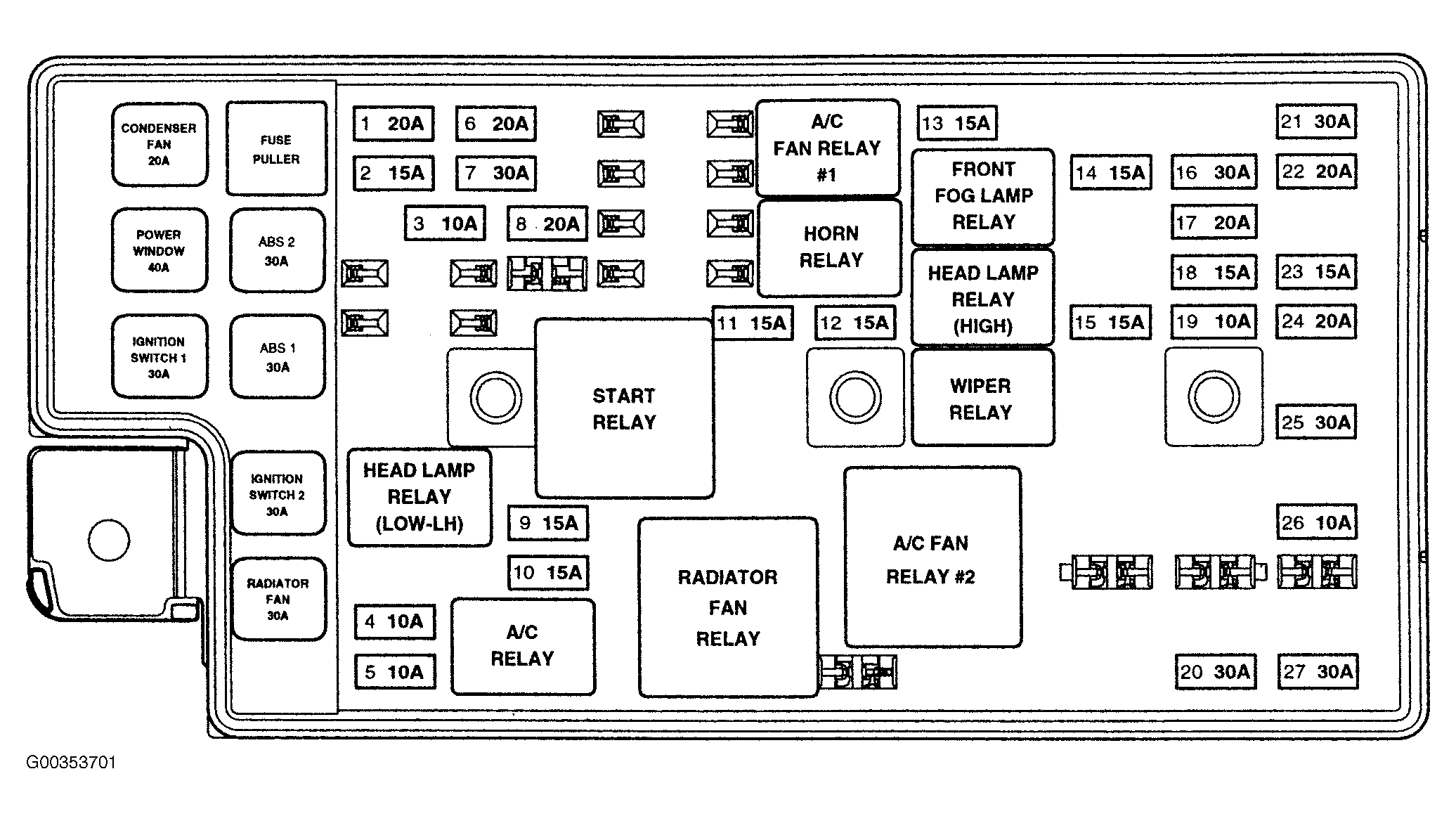

Fig 2: Identifying Engine Compartment Junction Box Components 2004

Courtesy of HYUNDAI MOTOR CO.

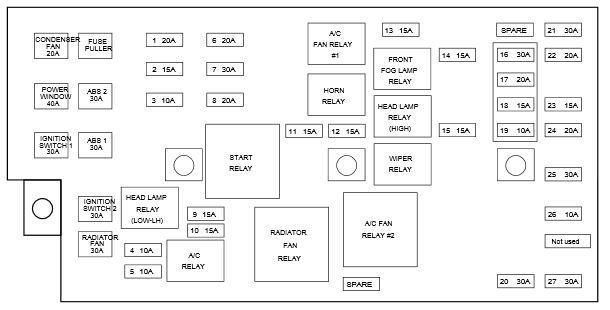

Fig 3: Identifying Engine Compartment Junction Box Components 2005

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Engine Compartment Junction Box Connector Terminals 2004

Courtesy of HYUNDAI MOTOR CO.

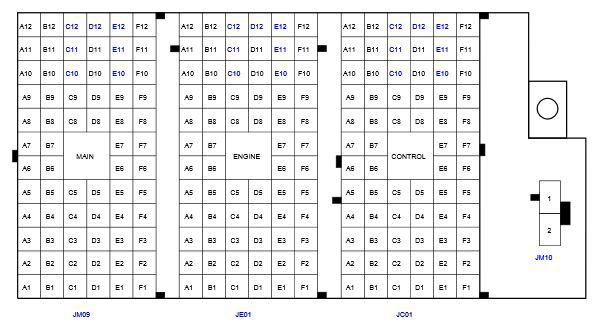

Fig 5: Identifying Engine Compartment Junction Box Connector Terminals 2005

Courtesy of HYUNDAI MOTOR CO.
