Special Tools
SPECIAL TOOLS
| Tool (Number and name) | Illustration | Use |
|---|---|---|

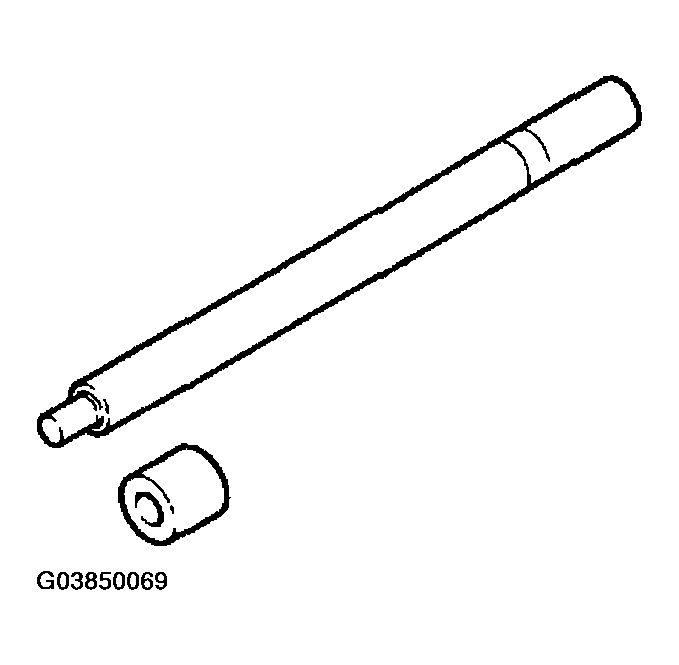

| 09222-32100 Valve stem oil seal installer |
|
|
| 09434-14200 Counter shaft bearing installer |
|
Installation of the oil seal to rack bushing and valve body |
| 09555-21000 Bar |
|
Removal and installation the oil seal. |

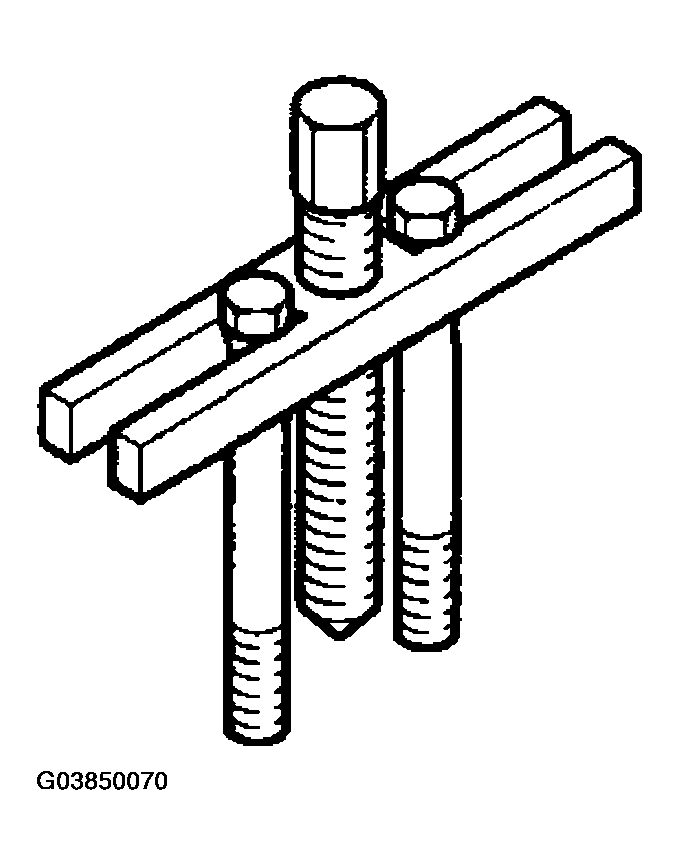

| 09561-11002 Steering wheel puller |
|
Removal of the steering wheel. |

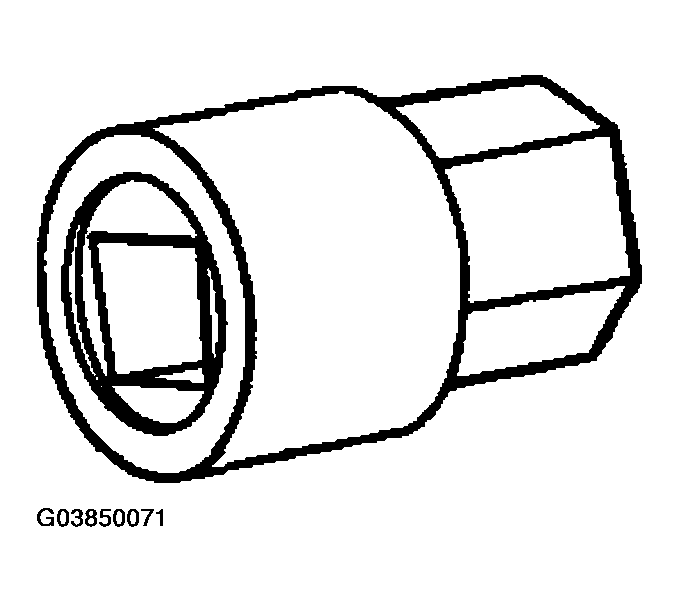

| 09565-31300 Yoke plug torque wrench socket |
|
Removal, installation and adjustment of steering gear yoke plug. |

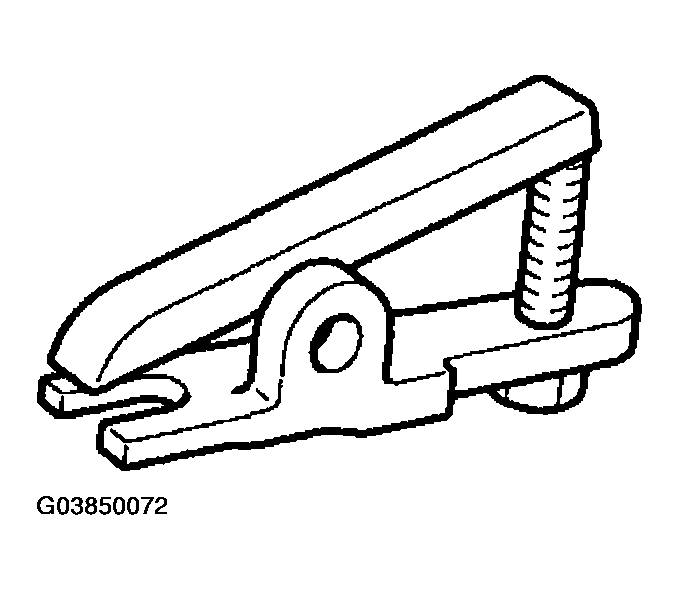

| 09568-31000 Tie rod end puller |
|
Separation of the tie rod end ball joint. |

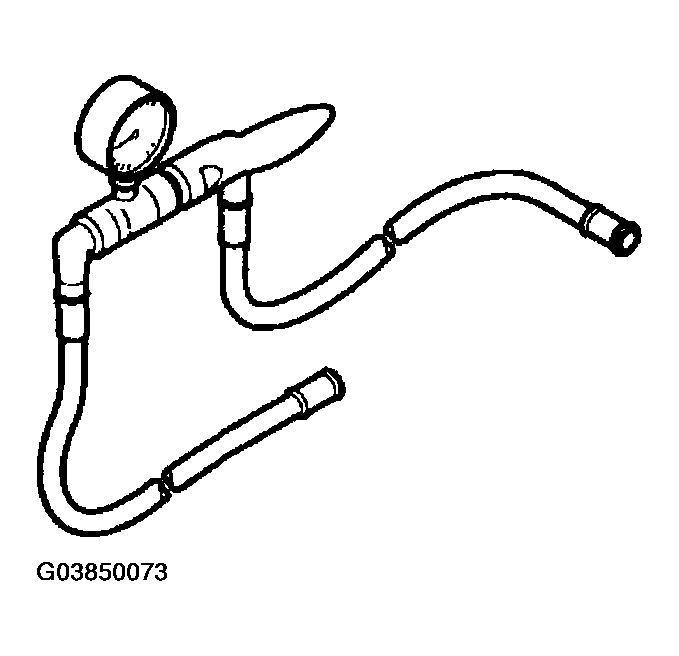

| 09572-21000 Oil pressure gauge |
|
Measurement of the power steering oil pressure. (Use with 09572-22100, 09572-21200) |

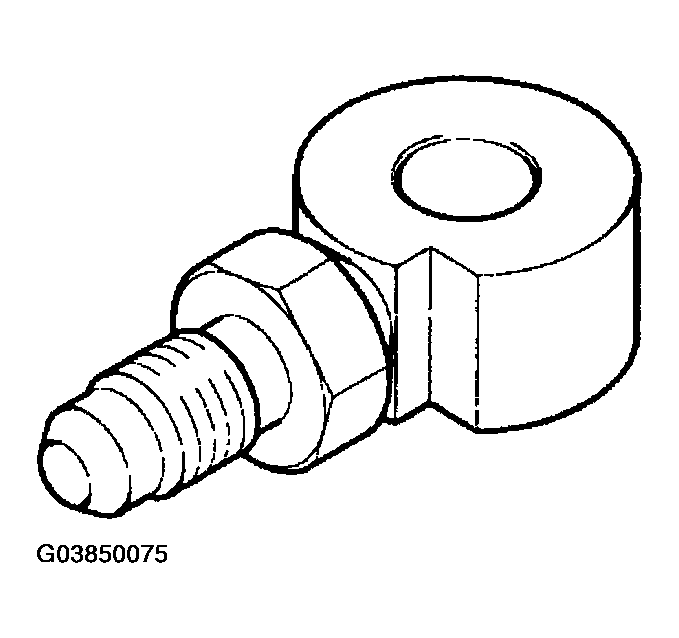

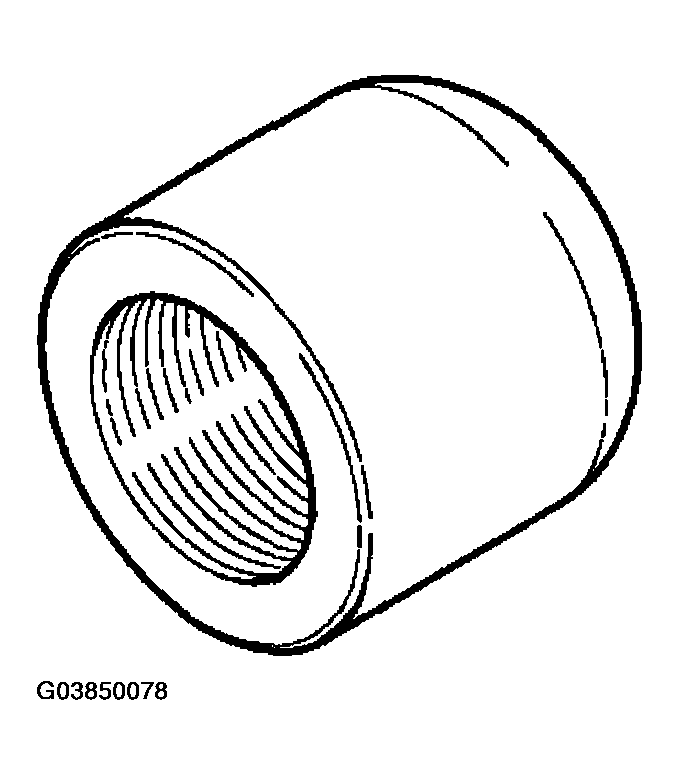

| 09572-21200 Oil pressure gauge adapter (Hose side) |
|
Measurement of the power steering oil pressure. (Use with 09572-21000, 09572-22100) |

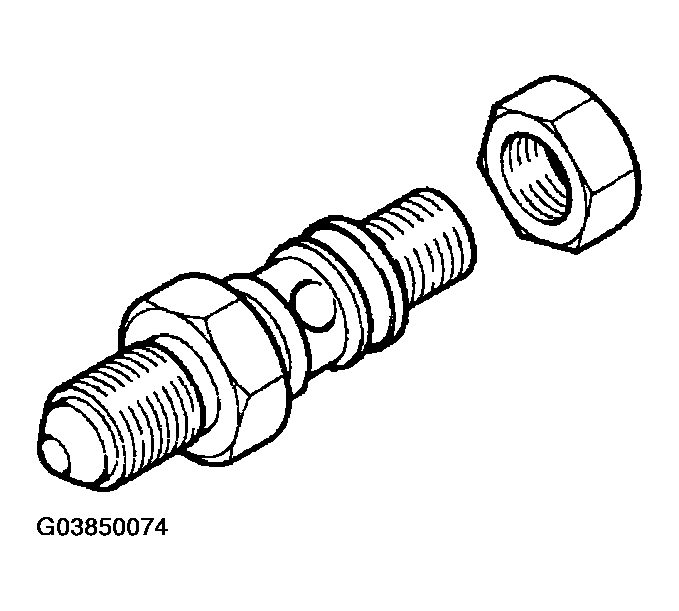

| 09572-22100 Oil pressure gauge adapter (Pump side) |
|
Measurement of the power steering oil pressure. (Use with 09572-21000, 09572-21200) |

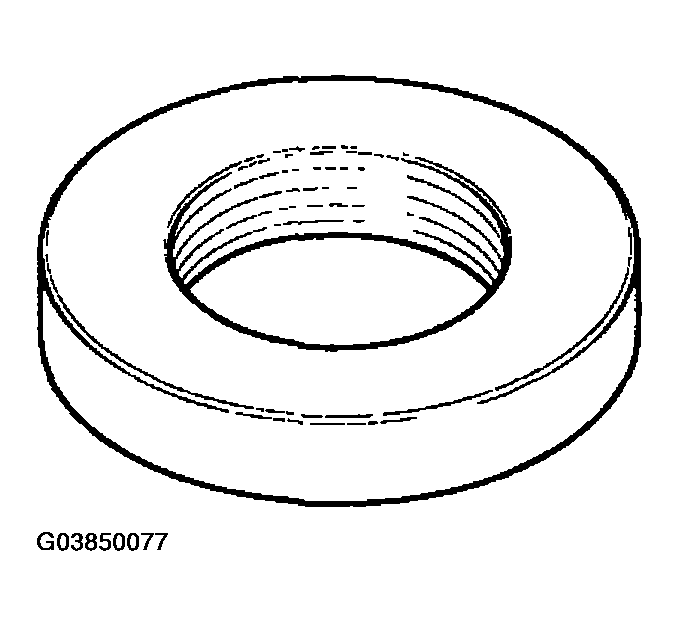

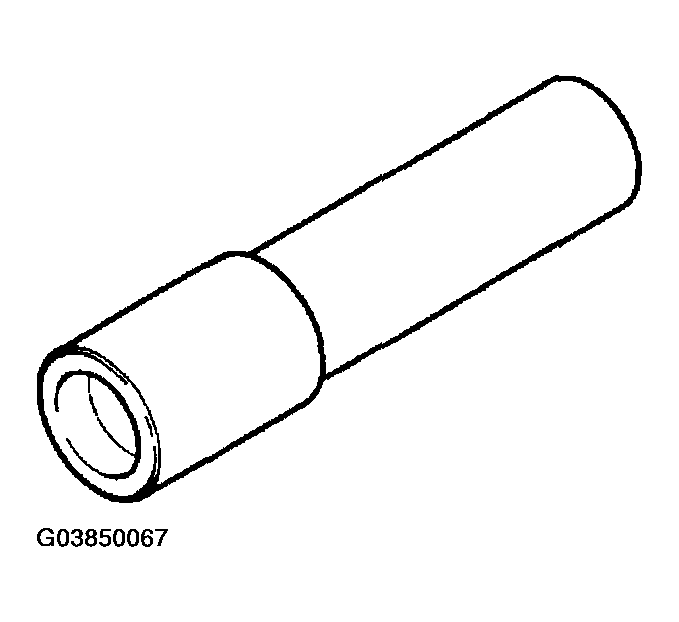

| 09573-21000 Oil seal installer guide |
|
Installation of the oil seal (Use with 09573-21100, 09573-21200, 09517-11000, 09555-21000) |

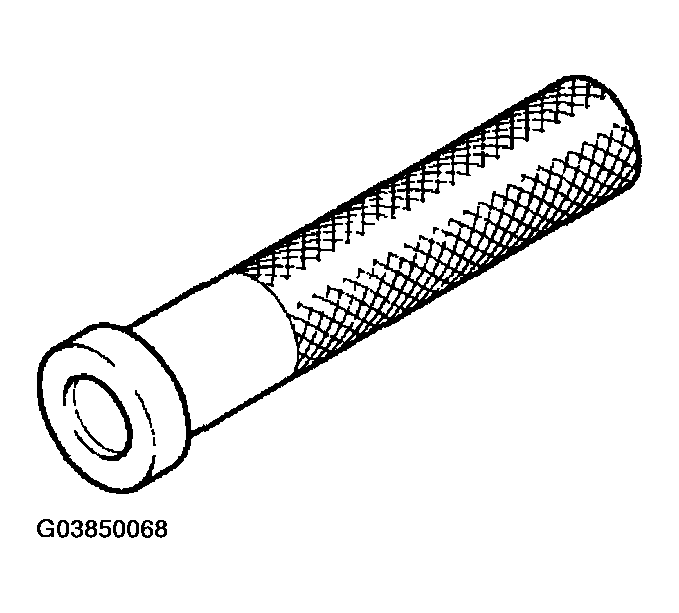

| 09573-21100 Oil seal installer |
|
Installation of the oil seal (Use with 09573-21000, 09573-21200, 09555-21000) |

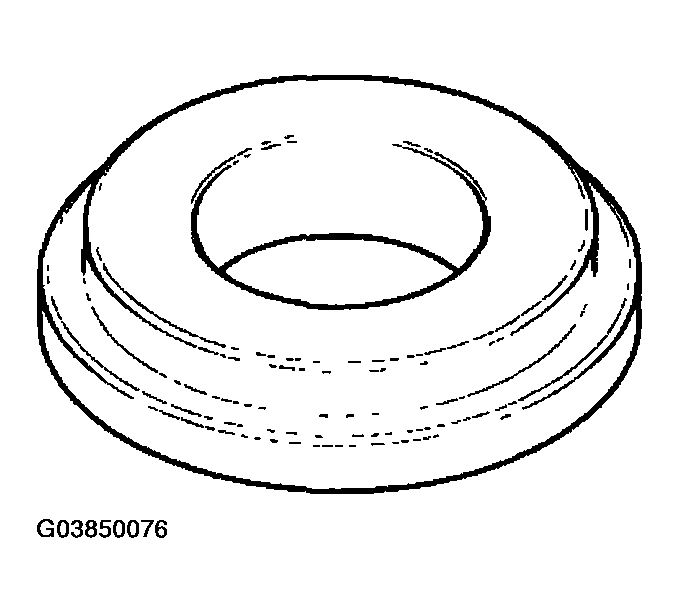

| 09573-21200 Oil seal guide |
|
Removal and installation of the oil seal |
