Special Tools
SPECIAL TOOLS DESCRIPTION
| Tool (Number and name) | Illustration | Use |
|---|---|---|

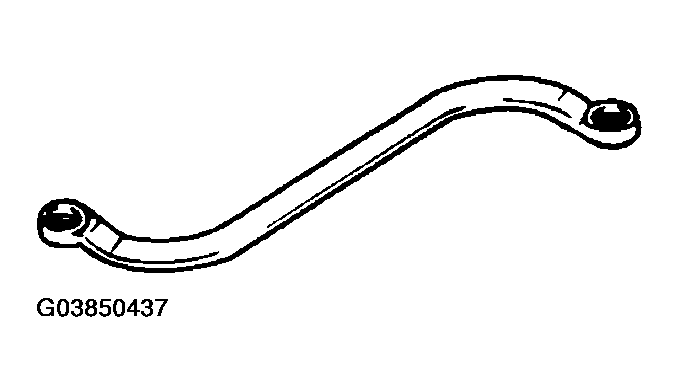

| 09793-21000 Door hinge adjusting wrench |
|
Adjustment, removal, and installation of the door hinge |

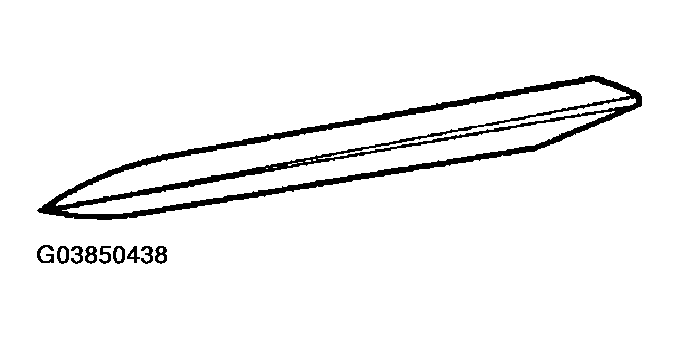

| 09800-21000 Ornament remover |
|
Trim removal |

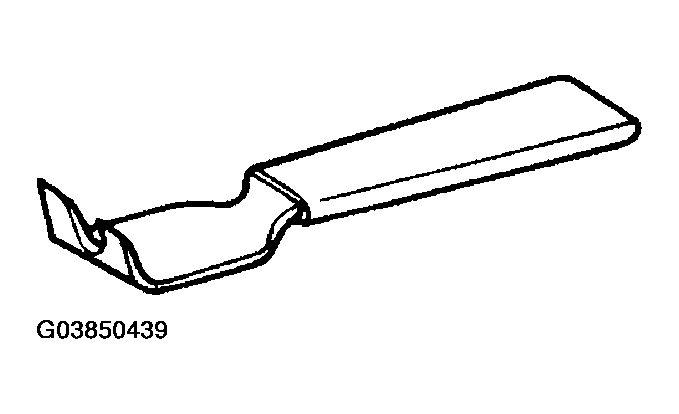

| 09853-31000 Headliner clip remover |
|
Removal of the headliner clip |

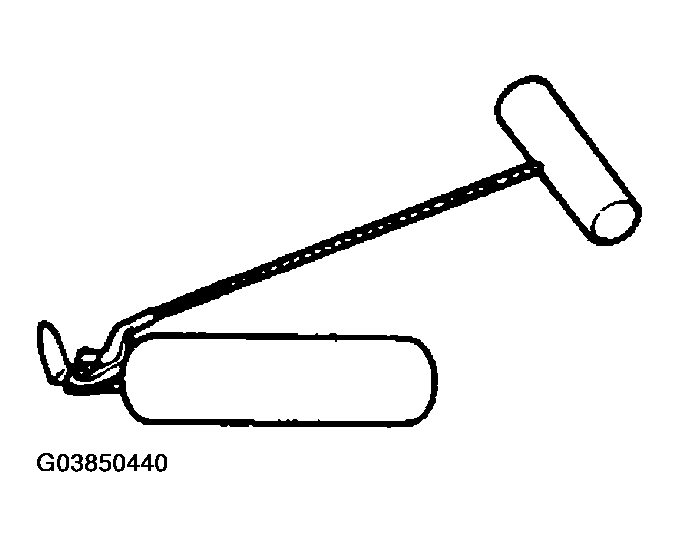

| 09861-31100 Sealant cut-out tool |
|
Cutting the sealant of the windshield (use with 09861-31200) |

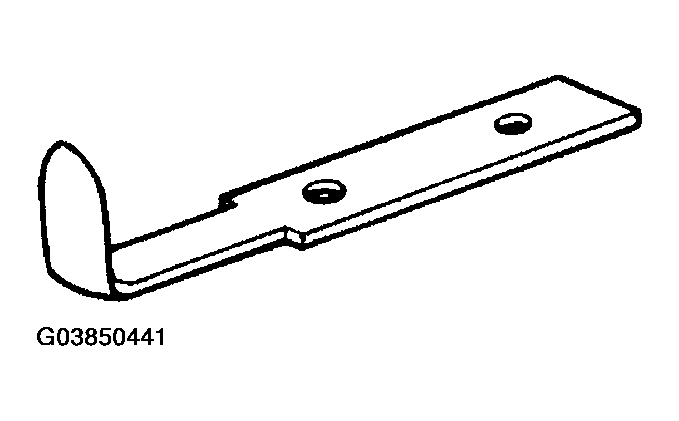

| 09861-31200 Sealant cutting blade |
|
Cutting the sealant of the windshield (use with 09861-31100) |

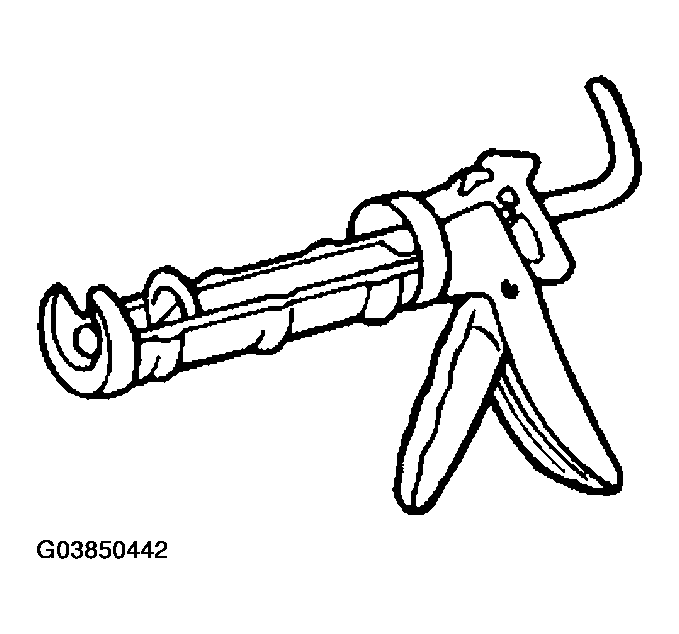

| 09861-31300 Sealant gun |
|
Application of the sealant to the windshield |

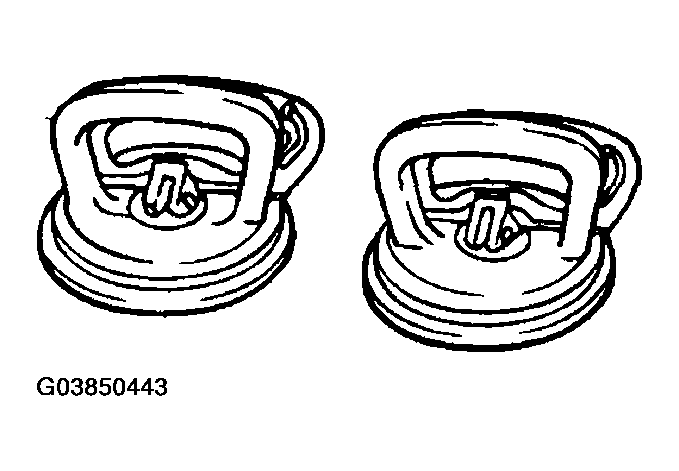

| 09861-31400 Glass holder |
|
Removal and installation of the windshield |

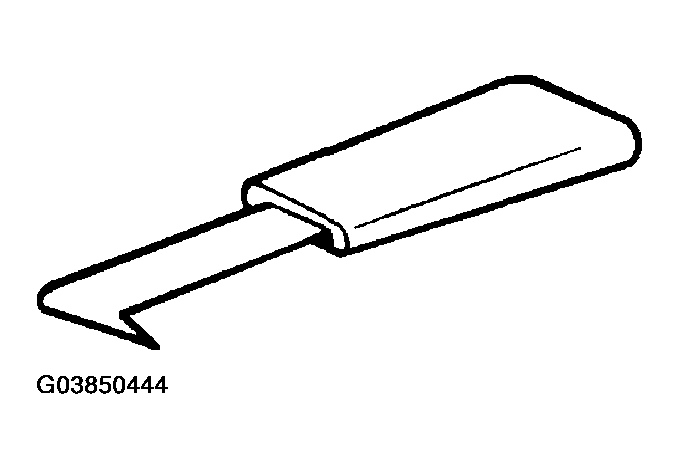

| 09861-31000 Windshield molding remover |
|
Removal of the windshield molding |
